基础
插桩编译
afl-gcc -g -o a a.c ./configure CC="afl-gcc" CXX="afl-g++" # autoconf ./configure --disable-shared CC="afl-gcc" CXX="afl-g++" # .so
开始fuzz
# -i 输入 -o 输出文件夹 从stdin读取输入 afl-fuzz -i testcase_dir -o findings_dir ./a # 从文件读取输入 @@是占位符 表示替换的位置 ./afl-fuzz -i testcase_dir -o findings_dir /path/to/program @@
eg afl-fuzz -m 300 -i ./zerotest/fuzz_in -o ./zerotest/fuzz_out ./zerotest/vuln -f
常见参数
-f testcase的内容会作为afl_test的stdin -m 分配的内存空间 -i 指定测试样本路径 -o 指定输出结果的路径 -t 设置程序运行超时值，单位为 ms -M 运行主(Master) Fuzzer -S 运行从属(Slave) Fuzzer /dev/null
启动文件选择
- 文件要小，理想小于1kb
- 只有当它们在功能上彼此不同时才使用多个测试用例

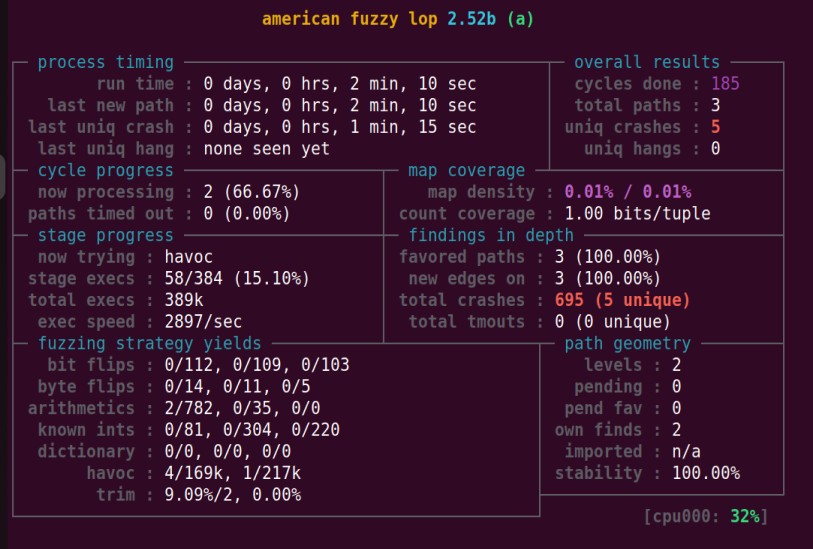

结果分析
last new path 如果报错要及时修正命令行参数，否则继续fuzz也是徒劳（因为路径不会改变） cycles done 如果变绿就说明后面即使继续fuzz，出现crash的几率也很低了，可以选择停止 uniq crashes 代表crash的数量
afl-whatsup工具可以查看每个fuzzer的运行状态和总体运行概况，加上-s选项只显示概况，其中的数据都是所有fuzzer的总和 afl-gotcpu工具可以查看每个核心使用状态
停止afl-fuzz时机：
- 状态窗口的cycles done变为绿色
- afl-whatsup查看afl-fuzz状态
- afl-stat得到类似于afl-whatsup的输出结果
- 定制afl-whatsup->在所有代码外面加个循环就好
- 用afl-plot绘制各种状态指标的直观变化趋势
- pythia估算发现新crash和path概率。
fuzz结束判断
- cycles done变为绿色
- 距上一次发现新路径（或者崩溃）已经过去很长时间
- 目标程序的代码几乎被测试用例完全覆盖，这种情况很少见
- pythia提供的各种数据中，path covera达到99或者correctness的值达到1e-08(含义: 从上次发现path/uniq crash到下一次发现之间大约需要1亿次执行)
crash分析
ayoung@ay:~/fuzz_learn$ xxd findings_dir/crashes/id\:000000\,sig\:06\,src\:000000\,op\:havoc\,rep\:64 00000000: dabf 1fbf d0a9 bf18 cbda bfbf bfd0 a9bf ................ 00000010: 18cb bfda bfdb bfbf bfb4 bfbf bfbf d6bf ................ 00000020: ff80 babf bfbf bf86 0000 0100 bfbf bf00 ................ 00000030: bff5 ffbf bb00 0083 1000 00df aabf bfbf ................ 00000040: 4343 4343 4343 4343 4343 43bf dabf dbbf CCCCCCCCCCC..... 00000050: bfbf b4bf bfaa ddbf bfbf bbba bfbf bfba ................ 00000060: bfbf bf64 d89f 64bf bbba 0002 bfbf 7f80 ...d..d......... 00000070: babf bfbf bf86 0040 0100 bfbf bf00 bff5 .......@........ 00000080: ffbf bb00 0083 1000 00df 2f ........../
gdb内部执行
pwndbg> r < findings_dir/crashes/id:000000,sig:06,src:000000,op:havoc,rep:64
简化crash
ayoung@ay:~/fuzz_learn$ cat findings_dir/crashes/id\:000000\,sig\:06\,src\:000000\,op\:havoc\,rep\:64 ڿ�Щ��ڿ��Щ�˿ڿۿ�������ֿ�����������������ߪ���CCCCCCCCCCC�ڿۿ������ݿ�����������d؟d������������@����������/ ayoung@ay:~/fuzz_learn$ afl-tmin -i findings_dir/crashes/id\:000000\,sig\:06\,src\:000000\,op\:havoc\,rep\:64 -o minimized_crash -- ./a afl-tmin 2.52b by <lcamtuf@google.com> [+] Read 139 bytes from 'findings_dir/crashes/id:000000,sig:06,src:000000,op:havoc,rep:64'. [*] Performing dry run (mem limit = 50 MB, timeout = 1000 ms)... [+] Program exits with a signal, minimizing in crash mode. [*] Stage #0: One-time block normalization... [+] Block normalization complete, 139 bytes replaced. [*] --- Pass #1 --- [*] Stage #1: Removing blocks of data... Block length = 8, remaining size = 139 Block length = 4, remaining size = 107 Block length = 2, remaining size = 107 Block length = 1, remaining size = 105 [+] Block removal complete, 34 bytes deleted. [*] Stage #2: Minimizing symbols (1 code point)... [+] Symbol minimization finished, 0 symbols (0 bytes) replaced. [*] Stage #3: Character minimization... [+] Character minimization done, 0 bytes replaced. [*] --- Pass #2 --- [*] Stage #1: Removing blocks of data... Block length = 8, remaining size = 105 Block length = 4, remaining size = 105 Block length = 2, remaining size = 105 Block length = 1, remaining size = 105 [+] Block removal complete, 0 bytes deleted. File size reduced by : 24.46% (to 105 bytes) Characters simplified : 132.38% Number of execs done : 57 Fruitless execs : path=16 crash=0 hang=0 [*] Writing output to 'minimized_crash'... [+] We're done here. Have a nice day! ayoung@ay:~/fuzz_learn$ cat minimized_crash 000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000
无源码测试
afl qemu-mode编译 gcc编译 afl-fuzz -i fuzz_in -o fuzz_out -Q ./afl_test2
llvm mode
可以获得更快的Fuzzing速度，针对大型项目可以考虑启用
语料库蒸馏
afl-cmin 移除执行相同代码的文件
afl-cmin -i input_dir -o output_dir -- /path/to/tested/program [params] afl-cmin -i input_dir -o output_dir -- /path/to/tested/program [params] @@
afl-tmin 减小单个输入文件的大小 默认instrumented mode
# instrumented mode afl-tmin -i input_file -o output_file -- /path/to/tested/program [params] @@ # crash mode 把导致程序非正常退出的文件直接剔除 afl-tmin -x -i input_file -o output_file -- /path/to/tested/program [params] @@
批量处理：
for i in id* do afl-tmin -i $i -o tmin-$i -- ~/path/to/tested/program [params] @@ done
使用完afl-tmin后再次使用afl-cmin，可能可以再过滤掉一些用例
