exercise1

本节学习：

编译带检测的目标程序
运行fuzzer
使用gdb分类crash

fuzz

xpdf环境搭好

ayoung@ubuntu:~/fuzzing_xpdf/pdf_examples$ $HOME/fuzzing_xpdf/install/bin/pdfinfo -box -meta small-example-pdf-file.pdf
Title:          Document1
Subject:
Keywords:
Author:         Administrator
Creator:        PDFCreator 2.0.2.0
Producer:       PDFCreator 2.0.2.0
CreationDate:   Sun Jul 26 00:25:22 2015
ModDate:        Sun Jul 26 00:25:22 2015
Tagged:         no
Pages:          1
Encrypted:      no
Page size:      595 x 842 pts (A4)
MediaBox:           0.00     0.00   595.00   842.00
CropBox:            0.00     0.00   595.00   842.00
BleedBox:           0.00     0.00   595.00   842.00
TrimBox:            0.00     0.00   595.00   842.00
ArtBox:             0.00     0.00   595.00   842.00
File size:      4107 bytes
Optimized:      yes
PDF version:    1.4
Metadata:
<?xpacket begin='' id='W5M0MpCehiHzreSzNTczkc9d'?>
<?adobe-xap-filters esc="CRLF"?>
<x:xmpmeta xmlns:x='adobe:ns:meta/' x:xmptk='XMP toolkit 2.9.1-13, framework 1.6'>
<rdf:RDF xmlns:rdf='http://www.w3.org/1999/02/22-rdf-syntax-ns#' xmlns:iX='http://ns.adobe.com/iX/1.0/'>
<rdf:Description rdf:about='uuid:7b7ff4e7-3534-11e5-0000-1d06e6d9e022' xmlns:pdf='http://ns.adobe.com/pdf/1.3/'><pdf:Producer>PDFCreator 2.0.2.0</pdf:Producer>
<pdf:Keywords></pdf:Keywords>
</rdf:Description>
<rdf:Description rdf:about='uuid:7b7ff4e7-3534-11e5-0000-1d06e6d9e022' xmlns:xmp='http://ns.adobe.com/xap/1.0/'><xmp:ModifyDate>2015-07-26T00:25:22+10:00</xmp:ModifyDate>
<xmp:CreateDate>2015-07-26T00:25:22+10:00</xmp:CreateDate>
<xmp:CreatorTool>PDFCreator 2.0.2.0</xmp:CreatorTool></rdf:Description>
<rdf:Description rdf:about='uuid:7b7ff4e7-3534-11e5-0000-1d06e6d9e022' xmlns:xapMM='http://ns.adobe.com/xap/1.0/mm/' xapMM:DocumentID='uuid:7b7ff4e7-3534-11e5-0000-1d06e6d9e022'/>
<rdf:Description rdf:about='uuid:7b7ff4e7-3534-11e5-0000-1d06e6d9e022' xmlns:dc='http://purl.org/dc/elements/1.1/' dc:format='application/pdf'><dc:title><rdf:Alt><rdf:li xml:lang='x-default'>Document1</rdf:li></rdf:Alt></dc:title><dc:creator><rdf:Seq><rdf:li>Administrator</rdf:li></rdf:Seq></dc:creator><dc:description><rdf:Alt><rdf:li xml:lang='x-default'></rdf:li></rdf:Alt></dc:description></rdf:Description>
</rdf:RDF>
</x:xmpmeta>


<?xpacket end='w'?>

文档写的安装步骤llvm版本过低使用llvm-13

wget https://apt.llvm.org/llvm.sh
chmod +x llvm.sh
sudo ./llvm.sh 13 all

踩坑：一直显示llvm mode编译失败，发现报错

fatal error: 'list' file not found
#include <list>
         ^~~~~~
1 error generated.
make[1]: *** [GNUmakefile.llvm:436: instrumentation/afl-llvm-common.o] Error 1
make[1]: Leaving directory '/home/ayoung/AFLplusplus'
make: [GNUmakefile:347: llvm] Error 2 (ignored)

缺库添加源sudo add-apt-repository ppa:ubuntu-toolchain-r/test 并update 安装sudo apt install libstdc++-13-dev

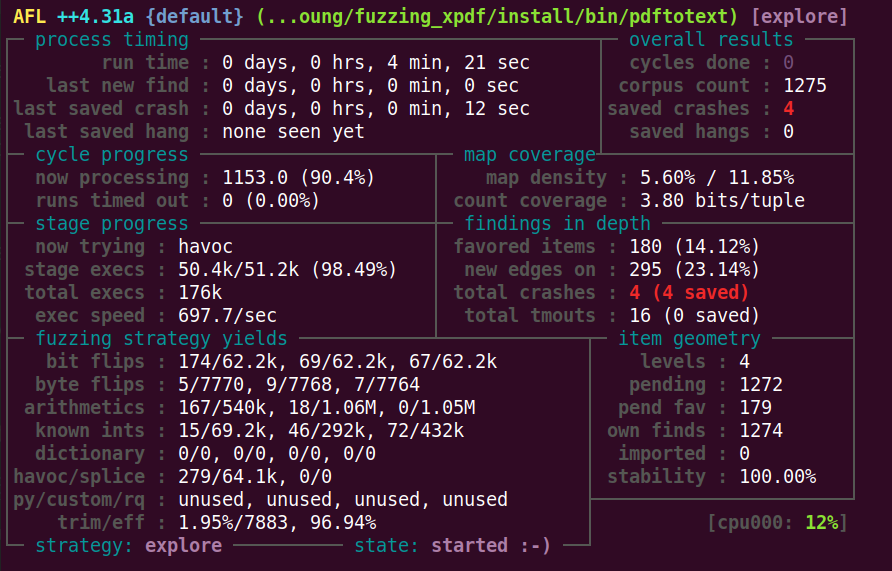

开始fuzz

afl-fuzz -i $HOME/fuzzing_xpdf/pdf_examples/ -o $HOME/fuzzing_xpdf/out/ -s 123 -- $HOME/fuzzing_xpdf/install/bin/pdftotext @@ $HOME/fuzzing_xpdf/output

-i 输入
-o 输出
-s 使用的静态随机种子
 @@ 命令占位符

用afl-tmin缩小一下crash样本

afl-tmin -i ../out/default/crashes/id\:000000\,sig\:11\,src\:000000\,time\:126030\,execs\:85533\,op\:havoc\,rep\:2 -o a -- $HOME/fuzzing_xpdf/install/bin/pdftotext @@ $HOME/fuzzing_xpdf/output

得到

ayoung@ubuntu:~/fuzzing_xpdf/xpdf-3.02$ cat a
trailer<</Root 5 0R
5 0 obj<<
7 0 obj<</Length 7 0R/>streama

crash分析

重新编译debug版本的

cd $HOME/fuzzing_xpdf/xpdf-3.02/
make clean
CFLAGS="-g -O0" CXXFLAGS="-g -O0"
make

启动gdb

gdb --args $HOME/fuzzing_xpdf/xpdf-3.02/xpdf/pdftotext out/default/crashes/a $HOME/fuzzing_xpdf/output

bt查看栈回溯看着就是陷入循环了

pwndbg> bt
#0  __vfprintf_internal (s=s@entry=0x7fffff7ff590, format=0x507d50 "Error (%d): ", ap=0x7fffff801c50, mode_flags=0) at vfprintf-internal.c:1365
#1  0x00007ffff7a43ea2 in buffered_vfprintf (s=s@entry=0x7ffff7bb75c0 <_IO_2_1_stderr_>, format=format@entry=0x507d50 "Error (%d): ", args=args@entry=0x7fffff801c50, mode_flags=mode_flags@entry=0) at vfprintf-internal.c:2377
#2  0x00007ffff7a40d24 in __vfprintf_internal (s=0x7ffff7bb75c0 <_IO_2_1_stderr_>, format=0x507d50 "Error (%d): ", ap=ap@entry=0x7fffff801c50, mode_flags=mode_flags@entry=0) at vfprintf-internal.c:1346
#3  0x00007ffff7a2bc6a in __fprintf (stream=<optimized out>, format=<optimized out>) at fprintf.c:32
#4  0x0000000000418b30 in error (pos=53, msg=0x50f0d0 "Illegal character '>'") at Error.cc:29
#5  0x0000000000495413 in Lexer::getObj (this=0x1eb13b0, obj=0x1eb1388) at Lexer.cc:424
#6  0x000000000049f792 in Parser::getObj (this=this@entry=0x1eb1360, obj=<optimized out>, obj@entry=0x7fffff801f68, fileKey=fileKey@entry=0x0, encAlgorithm=encAlgorithm@entry=cryptRC4, keyLength=keyLength@entry=0, objNum=objNum@entry=7, objGen=0) at Parser.cc:226
#7  0x000000000049f475 in Parser::getObj (this=0x1eb1360, obj=<optimized out>, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7, objGen=0) at Parser.cc:85
#8  0x00000000004d07c6 in XRef::fetch (this=0x7a25d0, num=7, gen=0, obj=0x7fffff802078) at XRef.cc:823
#9  0x000000000049fd14 in Object::dictLookup (this=0x7fffff802208, key=0x25 <error: Cannot access memory at address 0x25>, obj=0x7fffff802078) at ./Object.h:253
#10 Parser::makeStream (this=this@entry=0x1eb0ee0, dict=dict@entry=0x7fffff802208, fileKey=fileKey@entry=0x0, encAlgorithm=encAlgorithm@entry=cryptRC4, keyLength=keyLength@entry=0, objNum=objNum@entry=7, objGen=0) at Parser.cc:156
#11 0x000000000049f6eb in Parser::getObj (this=0x1eb0ee0, obj=<optimized out>, fileKey=0x0, encAlgorithm=cryptRC4, keyLength=0, objNum=7, objGen=0) at Parser.cc:94
#12 0x00000000004d07c6 in XRef::fetch (this=0x7a25d0, num=7, gen=0, obj=0x7fffff802208) at XRef.cc:823
#13 0x000000000049fd14 in Object::dictLookup (this=0x7fffff802398, key=0x25 <error: Cannot access memory at address 0x25>, obj=0x7fffff802208) at ./Object.h:253
#14 Parser::makeStream (this=this@entry=0x1eb0a60, dict=dict@entry=0x7fffff802398, fileKey=fileKey@entry=0x0, encAlgorithm=encAlgorithm@entry=cryptRC4, keyLength=keyLength@entry=0, objNum=objNum@entry=7, objGen=0) at Parser.cc:156

makeStream()-> dictLookup() -> fetch() -> getObj()

exercise2

本节学习：

使用外部应用来fuzz一个库
使用afl-clang-lto，这是个无冲突检测工具，比afl-clang-fast更快提供更好的结果

fuzz

ayoung@ayoung:~/fuzzing_libexif$ ./install/bin/exif exif-samples/jpg/tests/11-tests.jpg
EXIF tags in 'exif-samples/jpg/tests/11-tests.jpg' ('Intel' byte order):
--------------------+----------------------------------------------------------
Tag                 |Value
--------------------+----------------------------------------------------------
Manufacturer        |Canon
Model               |Canon DIGITAL IXUS 40
Date and Time       |2007:09:03 16:03:45
YCbCr Positioning   |centered
RelatedImageWidth   |2272
RelatedImageLength  |1704
Custom Rendered     |Normal process
Exposure Mode       |Auto exposure
White Balance       |Auto white balance
Digital Zoom Ratio  |1.00
Scene Capture Type  |Standard
Exposure Time       |1/500 sec.
FNumber             |f/2.8
Exif Version        |Exif Version 2.2
Date and Time (origi|2007:09:03 16:03:45
Date and Time (digit|2007:09:03 16:03:45
ComponentsConfigurat|Y Cb Cr -
Compressed Bits per |3.00
Shutter speed       |8.97 EV (APEX: 22, 1/501 sec.)
Aperture            |2.97 EV (f/2.8)
Exposure Bias       |0.00 EV
MaxApertureValue    |2.97 EV (f/2.8)
Metering Mode       |Pattern
Flash               |Flash did not fire, auto mode.
Focal Length        |5.8 mm
Maker Note          |1176 bytes unknown data
User Comment        |
FlashPixVersion     |FlashPix Version 1.0
Color Space         |sRGB
PixelXDimension     |2272
PixelYDimension     |1704
Focal Plane x-Resolu|10142.86
Focal Plane y-Resolu|10142.86
Focal Plane Resoluti|Inch
Sensing Method      |One-chip color area sensor
File Source         |DSC
--------------------+----------------------------------------------------------

alf-clang-fast和alf-clang-lto区别： afl-clang-lto 无碰撞检测比alf-clang-fast更快并提供更好的结果对于这些编译器在何种情况下使用给出下面解读

+--------------------------------+
| clang/clang++ 11+ is available | --> use LTO mode (afl-clang-lto/afl-clang-lto++)
+--------------------------------+     see [instrumentation/README.lto.md](instrumentation/README.lto.md)
    |
    | if not, or if the target fails with LTO afl-clang-lto/++
    |
    v
+---------------------------------+
| clang/clang++ 6.0+ is available | --> use LLVM mode (afl-clang-fast/afl-clang-fast++)
+---------------------------------+     see [instrumentation/README.llvm.md](instrumentation/README.llvm.md)
    |
    | if not, or if the target fails with LLVM afl-clang-fast/++
    |
    v
 +--------------------------------+
 | gcc 5+ is available            | -> use GCC_PLUGIN mode (afl-gcc-fast/afl-g++-fast)
 +--------------------------------+    see [instrumentation/README.gcc_plugin.md](instrumentation/README.gcc_plugin.md) and
                                       [instrumentation/README.instrument_list.md](instrumentation/README.instrument_list.md)
    |
    | if not, or if you do not have a gcc with plugin support
    |
    v
   use GCC mode (afl-gcc/afl-g++) (or afl-clang/afl-clang++ for clang)

插桩编译

# 重新编译 libexif
rm -r $HOME/fuzzing_libexif/install
cd $HOME/fuzzing_libexif/libexif-0.6.14/
make clean
export LLVM_CONFIG="llvm-config-13"
CC=afl-clang-lto ./configure --enable-shared=no --prefix="$HOME/fuzzing_libexif/install/"
make
make install

# 重新编译 exif
cd $HOME/fuzzing_libexif/exif-0.6.15
make clean
export LLVM_CONFIG="llvm-config-11"
CC=afl-clang-lto ./configure --enable-shared=no --prefix="$HOME/fuzzing_libexif/install/" PKG_CONFIG_PATH=$HOME/fuzzing_libexif/install/lib/pkgconfig
make
make install

sudo su
echo core >/proc/sys/kernel/core_pattern # 设置core dump文件名为静态core
exit

afl-fuzz -i $HOME/fuzzing_libexif/exif-samples/jpg/ -o $HOME/fuzzing_libexif/out/ -s 123 -- $HOME/fuzzing_libexif/install/bin/exif @@

编译带调试信息的程序源码调试

# libexif
rm -r $HOME/fuzzing_libexif/install
cd $HOME/fuzzing_libexif/libexif-0.6.14/
make clean
CFLAGS="-g -O0" CXXFLAGS="-g -O0" ./configure --enable-shared=no --prefix="$HOME/fuzzing_libexif/install/"
make
make install

# exif
cd $HOME/fuzzing_libexif/exif-0.6.15
make clean
CFLAGS="-g -O0" CXXFLAGS="-g -O0" PKG_CONFIG_PATH=$HOME/fuzzing_libexif/install/lib/pkgconfig ./configure --enable-shared=no --prefix="$HOME/fuzzing_libexif/install/"
make
make install

crash分析

看到两种崩溃点下面crash样本经过简化处理

ayoung@ayoung:~/fuzzing_libexif$ cat out/default/simple/res1  |xxd
00000000: e000 1030 3030 3030 3030 3030 3030 3030  ...0000000000000
00000010: 30e1 3030 4578 6966 0000 4d4d 002a ffff  0.00Exif..MM.*..
00000020: ffff

crash1 取值时指针异常

pwndbg> x/i $rip
=> 0x561d59dc7e54 <exif_get_sshort+47>: movzx  eax,BYTE PTR [rax]
pwndbg> p buf
$1 = (const unsigned char *) 0x561e5c4f88e5 <error: Cannot access memory at address 0x561e5c4f88e5>
pwndbg> bt
#0  0x0000561d59dc7e54 in exif_get_sshort (buf=0x561e5c4f88e5 <error: Cannot access memory at address 0x561e5c4f88e5>, order=EXIF_BYTE_ORDER_MOTOROLA) at exif-utils.c:92
#1  0x0000561d59dc7ebd in exif_get_short (buf=0x561e5c4f88e5 <error: Cannot access memory at address 0x561e5c4f88e5>, order=EXIF_BYTE_ORDER_MOTOROLA) at exif-utils.c:104
#2  0x0000561d59dbedbb in exif_data_load_data (data=0x561d5c4f67b0, d_orig=0x561d5c4f88e0 "Exif", ds_orig=14) at exif-data.c:819
#3  0x0000561d59dc686f in exif_loader_get_data (loader=0x561d5c4f6760) at exif-loader.c:387
#4  0x0000561d59dba02c in main (argc=2, argv=0x7fff785329d8) at main.c:438
#5  0x00007f3b58bd5d90 in __libc_start_call_main (main=main@entry=0x561d59db9673 <main>, argc=argc@entry=2, argv=argv@entry=0x7fff785329d8) at ../sysdeps/nptl/libc_start_call_main.h:58
#6  0x00007f3b58bd5e40 in __libc_start_main_impl (main=0x561d59db9673 <main>, argc=2, argv=0x7fff785329d8, init=<optimized out>, fini=<optimized out>, rtld_fini=<optimized out>, stack_end=0x7fff785329c8) at ../csu/libc-start.c:392
#7  0x0000561d59db77a5 in _start ()

参考现有分析断点下到exif-data.c:816

if (offset + 6 + 2 > ds) {
        return;
}
n = exif_get_short (d + 6 + offset, data->priv->order);

pwndbg> p/x offset
$3 = 0xffffffff
pwndbg> p/x offset+6+2
$6 = 0x7
pwndbg> p/x ds
$4 = 0xe

32位整数溢出回环后绕过了检查，但后续传入函数的是地址造成了越界访问到不可访问地址而exif_get_short()函数作用是从buf处获取16位整数并按照对应字节序解析定义如下

ExifSShort
exif_get_sshort (const unsigned char *buf, ExifByteOrder order)
{
	if (!buf) return 0;
        switch (order) {
        case EXIF_BYTE_ORDER_MOTOROLA:
                return ((buf[0] << 8) | buf[1]);
        case EXIF_BYTE_ORDER_INTEL:
                return ((buf[1] << 8) | buf[0]);
        }

	/* Won't be reached */
	return (0);
}

ExifShort
exif_get_short (const unsigned char *buf, ExifByteOrder order)
{
	return (exif_get_sshort (buf, order) & 0xffff);
}

crash2 堆溢出

ayoung@ayoung:~/fuzzing_libexif$ cat out/default/simple/res2
00ExifII000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000����

pwndbg> x/i $rip
=> 0x7f4437cd7398 <__memmove_evex_unaligned_erms+1496>: vmovdqu64 ymm20,YMMWORD PTR [rsi+0x1000]
pwndbg> x/10gx $rsi+0x1000
0x556ed3c20946: Cannot access memory at address 0x556ed3c20946
pwndbg> vmmap 0x556ed3c1f946
LEGEND: STACK | HEAP | CODE | DATA | WX | RODATA
             Start                End Perm     Size Offset File
    0x556eb4c19000     0x556eb4c1a000 rw-p     1000      0 [anon_556eb4c19]
►   0x556ed3bff000     0x556ed3c20000 rw-p    21000      0 [heap] +0x20946
    0x7f4337513000     0x7f4437514000 rw-p 100001000      0 [anon_7f4337513]
pwndbg> bt
#0  __memmove_evex_unaligned_erms () at ../sysdeps/x86_64/multiarch/memmove-vec-unaligned-erms.S:872
#1  0x0000556eb4bec3d9 in exif_data_load_data_thumbnail (data=0x556ed3c017b0, d=0x556ed3c038e6 "II*", ds=814, offset=48, size=4294967295) at exif-data.c:292
#2  0x0000556eb4bec8f8 in exif_data_load_data_content (data=0x556ed3c017b0, ifd=EXIF_IFD_0, d=0x556ed3c038e6 "II*", ds=814, offset=10, recursion_depth=0) at exif-data.c:381
#3  0x0000556eb4bedd8a in exif_data_load_data (data=0x556ed3c017b0, d_orig=0x556ed3c038e0 "Exif", ds_orig=820) at exif-data.c:813
#4  0x0000556eb4bf586f in exif_loader_get_data (loader=0x556ed3c01760) at exif-loader.c:387
#5  0x0000556eb4be902c in main (argc=2, argv=0x7fff048b5848) at main.c:438
#6  0x00007f4437b51d90 in __libc_start_call_main (main=main@entry=0x556eb4be8673 <main>, argc=argc@entry=2, argv=argv@entry=0x7fff048b5848) at ../sysdeps/nptl/libc_start_call_main.h:58
#7  0x00007f4437b51e40 in __libc_start_main_impl (main=0x556eb4be8673 <main>, argc=2, argv=0x7fff048b5848, init=<optimized out>, fini=<optimized out>, rtld_fini=<optimized out>, stack_end=0x7fff048b5838) at ../csu/libc-start.c:392
#8  0x0000556eb4be67a5 in _start ()

在往上找发现溢出点

 ► 0x55f1031843d4 <exif_data_load_data_thumbnail+248>    call   memcpy@plt                  <memcpy@plt>
        dest: 0x7fe5dd12f010 ◂— 0
        src: 0x55f13138b916 ◂— 0x3030303030303030 ('00000000')
        n: 0xffffffff

和crash1类似都是进行边界检查的时候出现整数溢出造成越界

static void
exif_data_load_data_thumbnail (ExifData *data, const unsigned char *d,
			       unsigned int ds, ExifLong offset, ExifLong size)
{
	if (ds < offset + size) {
		exif_log (data->priv->log, EXIF_LOG_CODE_DEBUG, "ExifData",
			  "Bogus thumbnail offset and size: %i < %i + %i.",
			  (int) ds, (int) offset, (int) size);
		return;
	}
	if (data->data)
		exif_mem_free (data->priv->mem, data->data);
	data->size = size;
	data->data = exif_data_alloc (data, data->size);
	if (!data->data)
		return;
	memcpy (data->data, d + offset, data->size);
}

pwndbg> p/x ds
$10 = 0x32e
pwndbg> p/x offset
$11 = 0x30
pwndbg> p/x size
$12 = 0xffffffff
pwndbg> p/x size+offset
$14 = 0x2f

从而发现第一个if条件由于整数溢出没有被判断出问题后续memcpy长度过长，在拷贝源数据的过程中发生越界读取造成崩溃

exercise3

本节学习：

什么是运行时内存错误检测工具ASan
如何使用ASAN fuzz目标
使用ASan分类crash有多容易

fuzz

编译略

ayoung@ayoung:~/fuzzing_tcpdump/tcpdump-4.9.2$ $HOME/fuzzing_tcpdump/install/sbin/tcpdump -h
tcpdump version 4.9.2
libpcap version 1.8.0
OpenSSL 3.0.2 15 Mar 2022
Usage: tcpdump [-aAbdDefhHIJKlLnNOpqStuUvxX#] [ -B size ] [ -c count ]
                [ -C file_size ] [ -E algo:secret ] [ -F file ] [ -G seconds ]
                [ -i interface ] [ -j tstamptype ] [ -M secret ] [ --number ]
                [ -Q in|out|inout ]
                [ -r file ] [ -s snaplen ] [ --time-stamp-precision precision ]
                [ --immediate-mode ] [ -T type ] [ --version ] [ -V file ]
                [ -w file ] [ -W filecount ] [ -y datalinktype ] [ -z postrotate-command ]
                [ -Z user ] [ expression ]

文件夹下有样例

ayoung@ayoung:~/fuzzing_tcpdump/tcpdump-4.9.2$ $HOME/fuzzing_tcpdump/install/sbin/tcpdump -vvvvXX -ee -nn -r ./tests/geneve.pcap
reading from file ./tests/geneve.pcap, link-type EN10MB (Ethernet)
22:04:33.817203 00:1b:21:3c:ab:64 > 00:1b:21:3c:ac:30, ethertype IPv4 (0x0800), length 156: (tos 0x0, ttl 64, id 57261, offset 0, flags [DF], proto UDP (17), length 142)
    20.0.0.1.12618 > 20.0.0.2.6081: [no cksum] Geneve, Flags [C], vni 0xa, proto TEB (0x6558), options [class Standard (0x0) type 0x80(C) len 8 data 0000000c]
        b6:9e:d2:49:51:48 > fe:71:d8:83:72:4f, ethertype IPv4 (0x0800), length 98: (tos 0x0, ttl 64, id 48546, offset 0, flags [DF], proto ICMP (1), length 84)
    30.0.0.1 > 30.0.0.2: ICMP echo request, id 10578, seq 23, length 64
        0x0000:  001b 213c ac30 001b 213c ab64 0800 4500  ..!<.0..!<.d..E.
        0x0010:  008e dfad 4000 4011 32af 1400 0001 1400  ....@.@.2.......
        0x0020:  0002 314a 17c1 007a 0000 0240 6558 0000  ..1J...z...@eX..
        0x0030:  0a00 0000 8001 0000 000c fe71 d883 724f  ...........q..rO
        0x0040:  b69e d249 5148 0800 4500 0054 bda2 4000  ...IQH..E..T..@.
        0x0050:  4001 4104 1e00 0001 1e00 0002 0800 2c54  @.A...........,T
        0x0060:  2952 0017 f1a2 ce54 0000 0000 1778 0c00  )R.....T.....x..
        0x0070:  0000 0000 1011 1213 1415 1617 1819 1a1b  ................
        0x0080:  1c1d 1e1f 2021 2223 2425 2627 2829 2a2b  .....!"#$%&'()*+
        0x0090:  2c2d 2e2f 3031 3233 3435 3637            ,-./01234567
        ...

AddressSanitizer(ASan)是C和C++快速内存错误检测器由编译器插桩模块和运行库组成，能够发现堆栈和全局对象越界访问，以及uaf、double free和内存泄露错误

接下来使用Asan编译

cd $HOME/fuzzing_tcpdump/libpcap-1.8.0/
export LLVM_CONFIG="llvm-config-13"
CC=afl-clang-lto ./configure --enable-shared=no --prefix="$HOME/fuzzing_tcpdump/install/"
AFL_USE_ASAN=1 make

cd $HOME/fuzzing_tcpdump/tcpdump-4.9.2/
AFL_USE_ASAN=1 CC=afl-clang-lto ./configure --prefix="$HOME/fuzzing_tcpdump/install/"
AFL_USE_ASAN=1 make
AFL_USE_ASAN=1 make install

显示由ASan编译

ayoung@ayoung:~/fuzzing_tcpdump/tcpdump-4.9.2$ ./tcpdump -h
tcpdump version 4.9.2
libpcap version 1.8.0
OpenSSL 3.0.2 15 Mar 2022
Compiled with AddressSanitizer/CLang.
Usage: tcpdump [-aAbdDefhHIJKlLnNOpqStuUvxX#] [ -B size ] [ -c count ]
                [ -C file_size ] [ -E algo:secret ] [ -F file ] [ -G seconds ]
                [ -i interface ] [ -j tstamptype ] [ -M secret ] [ --number ]
                [ -Q in|out|inout ]
                [ -r file ] [ -s snaplen ] [ --time-stamp-precision precision ]
                [ --immediate-mode ] [ -T type ] [ --version ] [ -V file ]
                [ -w file ] [ -W filecount ] [ -y datalinktype ] [ -z postrotate-command ]
                [ -Z user ] [ expression ]

开始fuzz

afl-fuzz -m none -i tcpdump-4.9.2/tests/ -o out/ -s 123 -- $HOME/fuzzing_tcpdump/install/sbin/tcpdump -vvvvXX -ee -nn -r @@

crash分析

跑了将近一天跑出10个crash

先尝试使用alf-tmin简化crash时碰到一个报错：

ayoung@ayoung:~/fuzzing_tcpdump/out/default/crashes$ afl-tmin -i ./id\:000000\,sig\:06\,src\:007302\,time\:34124764\,execs\:6059862\,op\:flip1\,pos\:16 -o 1 -- $HOME/fuzzing_tcpdump/install/sbin/tcpdump -vvvvXX -ee -nn -r @@
afl-tmin++4.32c by Michal Zalewski

[+] Read 5536 bytes from './id:000000,sig:06,src:007302,time:34124764,execs:6059862,op:flip1,pos:16'.
[*] Spinning up the fork server...

[-] PROGRAM ABORT : AFL_MAP_SIZE is not set and fuzzing target reports that the required size is very large. Solution: Run the fuzzing target stand-alone with the environment variable AFL_DUMP_MAP_SIZE=1 set the displayed value in the AFL_MAP_SIZE environment variable for afl-fuzz.
         Location : report_error_and_exit(), src/afl-forkserver.c:495

错误表明AFL++的共享内存大小（AFL_MAP_SIZE）未设置，而目标程序tcpdump需要更大的内存空间来记录代码覆盖率 AFL_MAP_SIZE默认64KB，当目标程序检测到默认空间不足就需要增大AFL_MAP_SIZE

确定所需的空间大小：

ayoung@ayoung:~/fuzzing_tcpdump/out/default/crashes$ AFL_DUMP_MAP_SIZE=1 $HOME/fuzzing_tcpdump/install/sbin/tcpdump -vvvvXX -ee -nn -r /dev/null
85601

之后运行afl-tmin时带上该环境变量，使用脚本批量简化

for i in id*
do
    AFL_MAP_SIZE=262144 afl-tmin -i $i -o tmin-$i -- $HOME/fuzzing_tcpdump/install/sbin/tcpdump -vvvvXX -ee -nn -r @@
done

运行crash，ASAN报堆溢出错误

==2526776==ERROR: AddressSanitizer: heap-buffer-overflow on address 0x61200000015b at pc 0x00000039dde6 bp 0x7ffc098f7200 sp 0x7ffc098f69a8
READ of size 4 at 0x61200000015b thread T0
    #0 0x39dde5 in MemcmpInterceptorCommon(void*, int (*)(void const*, void const*, unsigned long), void const*, void const*, unsigned long) crtstuff.c
    #1 0x39e2d9 in memcmp (/home/ayoung/fuzzing_tcpdump/install/sbin/tcpdump+0x39e2d9)
    #2 0x4af354 in bootp_print /home/ayoung/fuzzing_tcpdump/tcpdump-4.9.2/./print-bootp.c:382:6
    #3 0x531f38 in ip_print_demux /home/ayoung/fuzzing_tcpdump/tcpdump-4.9.2/./print-ip.c:402:3
    #4 0x535b7a in ip_print /home/ayoung/fuzzing_tcpdump/tcpdump-4.9.2/./print-ip.c:673:3
    #5 0x4ebe1e in ethertype_print /home/ayoung/fuzzing_tcpdump/tcpdump-4.9.2/./print-ether.c:333:10
    #6 0x4ea92e in ether_print /home/ayoung/fuzzing_tcpdump/tcpdump-4.9.2/./print-ether.c:236:7
    #7 0x4482ca in pretty_print_packet /home/ayoung/fuzzing_tcpdump/tcpdump-4.9.2/./print.c:332:18
    #8 0x4482ca in print_packet /home/ayoung/fuzzing_tcpdump/tcpdump-4.9.2/./tcpdump.c:2497:2
    #9 0x818a4a in pcap_offline_read /home/ayoung/fuzzing_tcpdump/libpcap-1.8.0/./savefile.c:523:4
    #10 0x441452 in pcap_loop /home/ayoung/fuzzing_tcpdump/libpcap-1.8.0/./pcap.c:904:8
    #11 0x441452 in main /home/ayoung/fuzzing_tcpdump/tcpdump-4.9.2/./tcpdump.c:2000:12
    #12 0x7f728571cd8f in __libc_start_call_main csu/../sysdeps/nptl/libc_start_call_main.h:58:16
    #13 0x7f728571ce3f in __libc_start_main csu/../csu/libc-start.c:392:3
    #14 0x385904 in _start (/home/ayoung/fuzzing_tcpdump/install/sbin/tcpdump+0x385904)

0x61200000015b is located 0 bytes to the right of 283-byte region [0x612000000040,0x61200000015b)
allocated by thread T0 here:
    #0 0x4027ed in malloc (/home/ayoung/fuzzing_tcpdump/install/sbin/tcpdump+0x4027ed)
    #1 0x81a0ea in pcap_check_header /home/ayoung/fuzzing_tcpdump/libpcap-1.8.0/./sf-pcap.c:401:14
    #2 0x817d59 in pcap_fopen_offline_with_tstamp_precision /home/ayoung/fuzzing_tcpdump/libpcap-1.8.0/./savefile.c:396:7
    #3 0x817a58 in pcap_open_offline_with_tstamp_precision /home/ayoung/fuzzing_tcpdump/libpcap-1.8.0/./savefile.c:303:6

SUMMARY: AddressSanitizer: heap-buffer-overflow crtstuff.c in MemcmpInterceptorCommon(void*, int (*)(void const*, void const*, unsigned long), void const*, void const*, unsigned long)
Shadow bytes around the buggy address:
  0x0c247fff7fd0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0x0c247fff7fe0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0x0c247fff7ff0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0x0c247fff8000: fa fa fa fa fa fa fa fa 00 00 00 00 00 00 00 00
  0x0c247fff8010: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
=>0x0c247fff8020: 00 00 00 00 00 00 00 00 00 00 00[03]fa fa fa fa
  0x0c247fff8030: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0c247fff8040: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0c247fff8050: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0c247fff8060: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0c247fff8070: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa

[03]表示对应的8字节内存中只有前3字节是合法的 asan影子内存标记值及其含义如下每个影子字节映射到应用程序8字节内存

Shadow Byte 值	内存状态	解释
`00`	Addressable	内存可安全访问（完全初始化）
`01-07`	Partially addressable	仅部分字节可访问（如结构体中的未填充区域）
`fa`	Heap left redzone	堆内存左侧红区（用于检测溢出）
`fd`	Freed heap region	已释放的堆内存（检测"释放后使用"错误）
`f1-f3`	Stack redzones	栈内存保护区域（检测栈溢出）
`f5`	Stack after return	函数返回后的栈空间（检测"返回后使用"错误）
`f8`	Stack use after scope	作用域结束后的栈变量（检测"作用域外使用"错误）
`f9`	Global redzone	全局变量保护区域
`fc`	Container overflow	容器（如数组）溢出
`ac`	Array cookie	数组边界校验符
`fe`	ASan internal	ASan 内部使用的保留区域

exercise4

本节学习：

如何使用LCOV测量代码覆盖率
如何使用代码覆盖率数据提高fuzz有效性

fuzz

同样带样例，带各种标志是为了提高代码覆盖率增加发现bug机会

ayoung@ayoung:~/fuzzing_tiff/tiff-4.0.4$ $HOME/fuzzing_tiff/install/bin/tiffinfo -D -j -c -r -s -w $HOME/fuzzing_tiff/tiff-4.0.4/test/images/palette-1c-1b.tiff
TIFF Directory at offset 0xbd4 (3028)
  Image Width: 157 Image Length: 151
  Bits/Sample: 1
  Sample Format: unsigned integer
  Compression Scheme: None
  Photometric Interpretation: palette color (RGB from colormap)
  Samples/Pixel: 1
  Rows/Strip: 409
  Planar Configuration: single image plane
  Page Number: 0-1
  Color Map:
       0:     0     0     0
       1: 65535 65535 65535
  DocumentName: palette-1c-1b.tiff
  Software: GraphicsMagick 1.2 unreleased Q16 http://www.GraphicsMagick.org/
  1 Strips:
      0: [       8,     3020]

重新编译libTIFF 带--coverage标志（编译器和链接器）

rm -r $HOME/fuzzing_tiff/install
cd $HOME/fuzzing_tiff/tiff-4.0.4/
make clean

CFLAGS="--coverage" LDFLAGS="--coverage" ./configure --prefix="$HOME/fuzzing_tiff/install/" --disable-shared
make
make install

通过下面代码收集代码覆盖率

cd $HOME/fuzzing_tiff/tiff-4.0.4/
lcov --zerocounters --directory ./ # 重置以前的计数器
lcov --capture --initial --directory ./ --output-file app.info # 返回"baseline"覆盖数据文件，包含每个检测行的零覆盖率
$HOME/fuzzing_tiff/install/bin/tiffinfo -D -j -c -r -s -w $HOME/fuzzing_tiff/tiff-4.0.4/test/images/palette-1c-1b.tiff
lcov --no-checksum --directory ./ --capture --output-file app2.info # 将当前覆盖状态保存到app2.info文件中

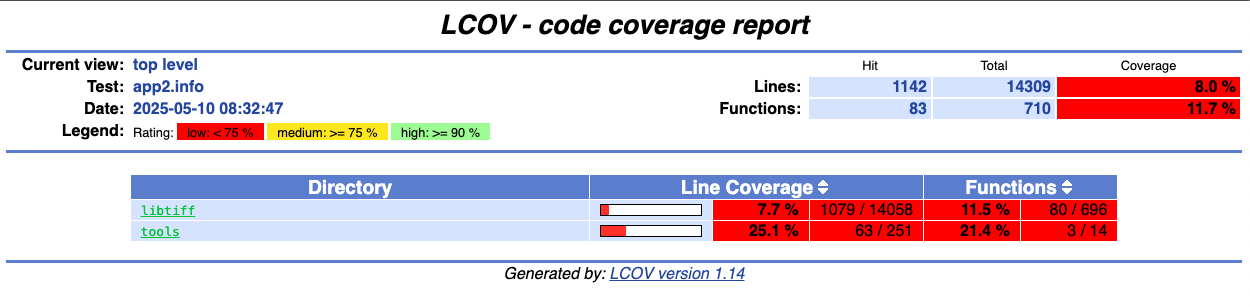

生成HTML输出

genhtml --highlight --legend -output-directory ./html-coverage/ ./app2.info

./html-coverage/index.html

插桩编译

rm -r $HOME/fuzzing_tiff/install
cd $HOME/fuzzing_tiff/tiff-4.0.4/
make clean
export LLVM_CONFIG="llvm-config-13"
CC=afl-clang-lto ./configure --prefix="$HOME/fuzzing_tiff/install/" --disable-shared
AFL_USE_ASAN=1 make -j4
AFL_USE_ASAN=1 make install

开始fuzz

afl-fuzz -m none -i tiff-4.0.4/test/images/ -o out/ -s 123 -- $HOME/fuzzing_tiff/install/bin/tiffinfo -D -j -c -r -s -w @@

crash分析

tmin简化后

ayoung@ayoung:~/fuzzing_tiff/out/default/crashes$ cat tmin/tmin-id\:000000\,sig\:06\,src\:000000\,time\:17621\,execs\:6491\,op\:arith16\,pos\:55\,val\:-2
II*00000000
           00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000ayoung@ayoung:~/fuzzing_tiff/out/default/crashes$ cat tmin/tmin-id\:000000\,sig\:06\,src\:000000\,time\:17621\,execs\:6491\,op\:arith16\,pos\:55\,val\:-2  | xxd
00000000: 4949 2a00 1000 0000 3030 3030 3030 3030  II*.....00000000
00000010: 0b00 0001 0300 0100 0000 3030 3030 0101  ..........0000..
00000020: 0300 0100 0000 3030 3030 3030 3030 3030  ......0000000000
00000030: 3030 3030 3030 0330 0200 0100 0000 3030  000000.0......00
00000040: 3030 3030 3030 3030 3030 3030 3030 1101  00000000000000..
00000050: 0400 0100 0000 3030 3030 3030 3030 3030  ......0000000000
00000060: 3030 3030 3030 3030 3030 3030 3030 3030  0000000000000000
00000070: 3030 3030 3030 3030 3030 3030 3030 3030  0000000000000000
00000080: 3030 3030 3030 3030 3030 3030 3030 3030  0000000000000000
00000090: 3030 3030 3030                           000000

报错堆溢出影子内存显示[01]只有第一字节合法但程序试图读取2字节触发溢出

=================================================================
==2650984==ERROR: AddressSanitizer: heap-buffer-overflow on address 0x602000000051 at pc 0x0000002bec12 bp 0x7ffefba54570 sp 0x7ffefba53d30
READ of size 2 at 0x602000000051 thread T0
    #0 0x2bec11 in fputs (/home/ayoung/fuzzing_tiff/install/bin/tiffinfo+0x2bec11)
    #1 0x4d39a8 in _TIFFPrintField /home/ayoung/fuzzing_tiff/tiff-4.0.4/libtiff/tif_print.c:127:4
    #2 0x4d39a8 in TIFFPrintDirectory /home/ayoung/fuzzing_tiff/tiff-4.0.4/libtiff/tif_print.c:641:5
    #3 0x358a27 in tiffinfo /home/ayoung/fuzzing_tiff/tiff-4.0.4/tools/tiffinfo.c:449:2
    #4 0x358a27 in main /home/ayoung/fuzzing_tiff/tiff-4.0.4/tools/tiffinfo.c:152:6
    #5 0x7f997818dd8f in __libc_start_call_main csu/../sysdeps/nptl/libc_start_call_main.h:58:16
    #6 0x7f997818de3f in __libc_start_main csu/../csu/libc-start.c:392:3
    #7 0x2a3d24 in _start (/home/ayoung/fuzzing_tiff/install/bin/tiffinfo+0x2a3d24)

0x602000000051 is located 0 bytes to the right of 1-byte region [0x602000000050,0x602000000051)
allocated by thread T0 here:
    #0 0x320c0d in malloc (/home/ayoung/fuzzing_tiff/install/bin/tiffinfo+0x320c0d)
    #1 0x370123 in _TIFFmalloc /home/ayoung/fuzzing_tiff/tiff-4.0.4/libtiff/tif_unix.c:283:10
    #2 0x370123 in setByteArray /home/ayoung/fuzzing_tiff/tiff-4.0.4/libtiff/tif_dir.c:51:19
    #3 0x370123 in _TIFFVSetField /home/ayoung/fuzzing_tiff/tiff-4.0.4/libtiff/tif_dir.c:539:4
    #4 0x369c66 in TIFFVSetField /home/ayoung/fuzzing_tiff/tiff-4.0.4/libtiff/tif_dir.c:820:6
    #5 0x369c66 in TIFFSetField /home/ayoung/fuzzing_tiff/tiff-4.0.4/libtiff/tif_dir.c:764:11
    #6 0x3a8e15 in TIFFFetchNormalTag /home/ayoung/fuzzing_tiff/tiff-4.0.4/libtiff/tif_dirread.c:5164:8
    #7 0x39abee in TIFFReadDirectory /home/ayoung/fuzzing_tiff/tiff-4.0.4/libtiff/tif_dirread.c:3810:12
    #8 0x49cc3b in TIFFClientOpen /home/ayoung/fuzzing_tiff/tiff-4.0.4/libtiff/tif_open.c:466:8
    #9 0x4effc2 in TIFFFdOpen /home/ayoung/fuzzing_tiff/tiff-4.0.4/libtiff/tif_unix.c:178:8
    #10 0x4effc2 in TIFFOpen /home/ayoung/fuzzing_tiff/tiff-4.0.4/libtiff/tif_unix.c:217:8

SUMMARY: AddressSanitizer: heap-buffer-overflow (/home/ayoung/fuzzing_tiff/install/bin/tiffinfo+0x2bec11) in fputs
Shadow bytes around the buggy address:
  0x0c047fff7fb0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0x0c047fff7fc0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0x0c047fff7fd0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0x0c047fff7fe0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0x0c047fff7ff0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
=>0x0c047fff8000: fa fa 00 00 fa fa fd fa fa fa[01]fa fa fa fd fa
  0x0c047fff8010: fa fa 00 fa fa fa 00 fa fa fa fa fa fa fa fa fa
  0x0c047fff8020: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0c047fff8030: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0c047fff8040: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0c047fff8050: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa

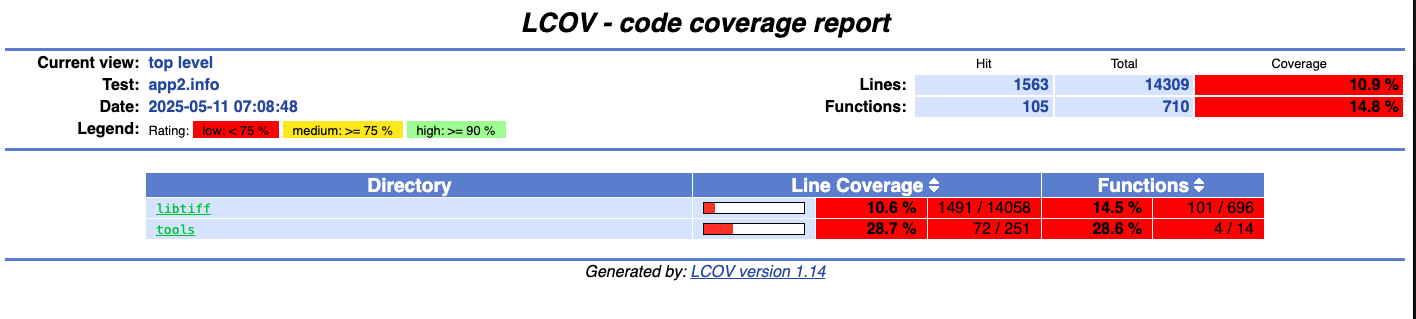

把所有crash跑了一遍看代码覆盖率

exercise5

本节学习：

使用自定义字典帮助fuzzer找到新路径

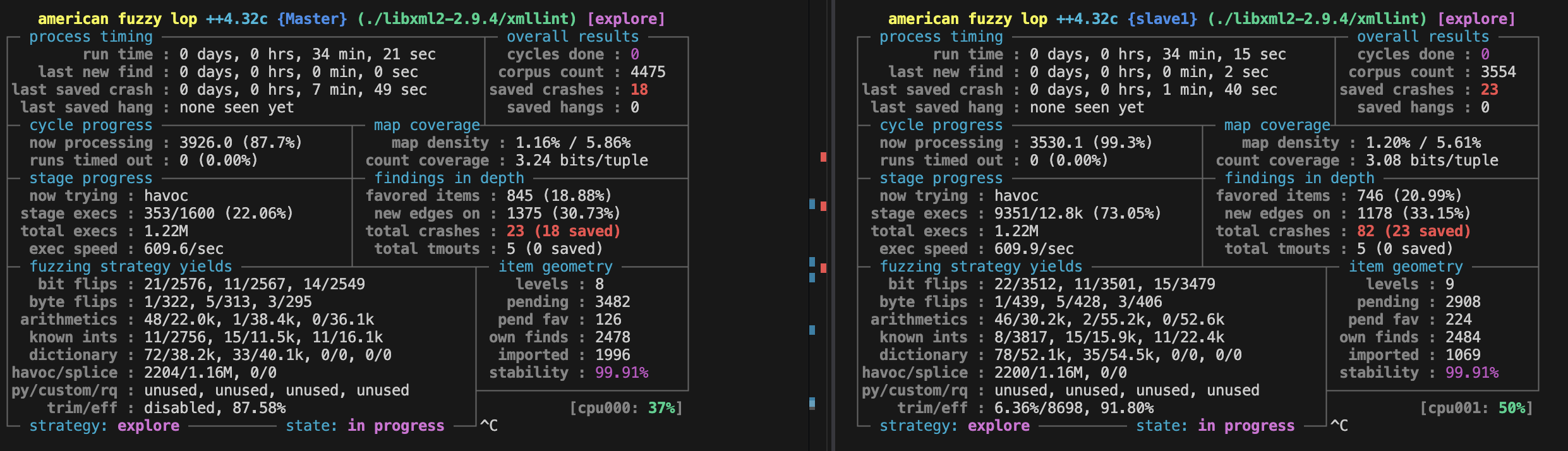

使用多核并行fuzzing提高效率

fuzz

参考文档安装

ayoung@ayoung:~/Fuzzing_libxml2/libxml2-2.9.4$ ./xmllint --memory ./test/wml.xml
<?xml version="1.0"?>
<!DOCTYPE wml PUBLIC "-//WAPFORUM//DTD WML 1.1//EN" "http://www.wapforum.org/DTD/wml_1.1.xml">
<wml>
  <card id="card1" title="Rubriques 75008">
        <p>
                <a href="rubmenu.asp?CP=75008&amp;RB=01">Cin&#xE9;ma</a><br/>
        </p>

</card>
</wml>

下载xml示例和字典

SampleInput.xml

<!DOCTYPE a []>

字典

#
# AFL dictionary for XML
# ----------------------
#
# Several basic syntax elements and attributes, modeled on libxml2.
#
# Created by Michal Zalewski
#

attr_encoding=" encoding=\"1\""
attr_generic=" a=\"1\""
attr_href=" href=\"1\""
attr_standalone=" standalone=\"no\""
attr_version=" version=\"1\""
attr_xml_base=" xml:base=\"1\""
attr_xml_id=" xml:id=\"1\""
attr_xml_lang=" xml:lang=\"1\""
attr_xml_space=" xml:space=\"1\""
attr_xmlns=" xmlns=\"1\""

entity_builtin="&lt;"
entity_decimal="&#1;"
entity_external="&a;"
entity_hex="&#x1;"

string_any="ANY"
string_brackets="[]"
string_cdata="CDATA"
string_col_fallback=":fallback"
string_col_generic=":a"
string_col_include=":include"
string_dashes="--"
string_empty="EMPTY"
string_empty_dblquotes="\"\""
string_empty_quotes="''"
string_entities="ENTITIES"
string_entity="ENTITY"
string_fixed="#FIXED"
string_id="ID"
string_idref="IDREF"
string_idrefs="IDREFS"
string_implied="#IMPLIED"
string_nmtoken="NMTOKEN"
string_nmtokens="NMTOKENS"
string_notation="NOTATION"
string_parentheses="()"
string_pcdata="#PCDATA"
string_percent="%a"
string_public="PUBLIC"
string_required="#REQUIRED"
string_schema=":schema"
string_system="SYSTEM"
string_ucs4="UCS-4"
string_utf16="UTF-16"
string_utf8="UTF-8"
string_xmlns="xmlns:"

tag_attlist="<!ATTLIST"
tag_cdata="<![CDATA["
tag_close="</a>"
tag_doctype="<!DOCTYPE"
tag_element="<!ELEMENT"
tag_entity="<!ENTITY"
tag_ignore="<![IGNORE["
tag_include="<![INCLUDE["
tag_notation="<!NOTATION"
tag_open="<a>"
tag_open_close="<a />"
tag_open_exclamation="<!"
tag_open_q="<?"
tag_sq2_close="]]>"
tag_xml_q="<?xml?>"

关于fuzz参数的使用：

-x：标记使用的字典
-D：表示启用了确定性突变
-M：表示主模糊器
-S：表示从模糊器
--valid：为捕获错误

开始fuzz 配置并行fuzz 主节点和从节点协同工作提高效率

afl-fuzz -i afl_in/ -x dictionaries/xml.dict -o afl_out -D -M Master -- ./libxml2-2.9.4/xmllint --debug --recover --load-trace --nonet --postvalid --timing @@

afl-fuzz -i afl_in/ -x dictionaries/xml.dict -o afl_out -S slave1 -- ./libxml2-2.9.4/xmllint --debug  --recover --load-trace --nonet --postvalid --timing @@
afl-fuzz -i afl_in/ -x dictionaries/xml.dict -o afl_out -S slave2 -- ./libxml2-2.9.4/xmllint --debug  --recover --load-trace --nonet --postvalid --timing @@
afl-fuzz -i afl_in/ -x dictionaries/xml.dict -o afl_out -S slave3 -- ./libxml2-2.9.4/xmllint --debug  --recover --load-trace --nonet --postvalid --timing @@

参考官方和博客都没fuzz出东西后面看了一下不知道为什么选项有点不一样。一开始没注意选项一直报错 afl界面显示last new find : none yet (odd, check syntax!)，其实就是启动的有问题了。后面把无效选项去掉就好了。

然后问了下ai怎么去重做后续分析先统一所有crash到一起

mkdir -p ./all_crashes
find afl_out -type f -path "*/crashes/*" -exec cp {} ./all_crashes \;

使用alf-cmin去重（去掉了几十个重复的）

afl-cmin -i ./all_crashes -o ./unique_crashes -- ./libxml2-2.9.4/xmllint --debug  --recover --load-trace --nonet --postvalid --timing @@

执行其中一个crash样本 asan报堆溢出尝试读取超出分配内存范围的 1 字节，程序分配了4字节但尝试读取第五字节

ayoung@ayoung:~/Fuzzing_libxml2$ ./libxml2-2.9.4/xmllint --debug  --recover --load-trace --
nonet --postvalid --timing all_crashes/id\:000000\,sig\:06\,src\:000763\,time\:264929\,exec
s\:159395\,op\:int16\,pos\:26\,val\:+1000
...
=================================================================
==1436429==ERROR: AddressSanitizer: heap-buffer-overflow on address 0x6020000001f4 at pc 0x0000003eb76e bp 0x7ffc7b473390 sp 0x7ffc7b473388
READ of size 1 at 0x6020000001f4 thread T0
    #0 0x3eb76d in xmlEncodeEntitiesInternal /home/ayoung/Fuzzing_libxml2/libxml2-2.9.4/entities.c:578:12
    #1 0x53921c in xmlNodeListGetString /home/ayoung/Fuzzing_libxml2/libxml2-2.9.4/tree.c
    #2 0x5cd3e5 in xmlValidateElement /home/ayoung/Fuzzing_libxml2/libxml2-2.9.4/valid.c:6401:14
    #3 0x3d075e in xmlValidateDocument /home/ayoung/Fuzzing_libxml2/libxml2-2.9.4/valid.c:6857:12
    #4 0x3d075e in parseAndPrintFile /home/ayoung/Fuzzing_libxml2/libxml2-2.9.4/xmllint.c:2819:7
    #5 0x3b7b66 in main /home/ayoung/Fuzzing_libxml2/libxml2-2.9.4/xmllint.c:3767:7
    #6 0x7fdb8f2f9d8f in __libc_start_call_main csu/../sysdeps/nptl/libc_start_call_main.h:58:16
    #7 0x7fdb8f2f9e3f in __libc_start_main csu/../csu/libc-start.c:392:3
    #8 0x2f81e4 in _start (/home/ayoung/Fuzzing_libxml2/libxml2-2.9.4/xmllint+0x2f81e4)

0x6020000001f4 is located 0 bytes to the right of 4-byte region [0x6020000001f0,0x6020000001f4)
allocated by thread T0 here:
    #0 0x3750cd in malloc (/home/ayoung/Fuzzing_libxml2/libxml2-2.9.4/xmllint+0x3750cd)
    #1 0x7484d7 in xmlBufResize /home/ayoung/Fuzzing_libxml2/libxml2-2.9.4/buf.c:827:26

SUMMARY: AddressSanitizer: heap-buffer-overflow /home/ayoung/Fuzzing_libxml2/libxml2-2.9.4/entities.c:578:12 in xmlEncodeEntitiesInternal
Shadow bytes around the buggy address:
  0x0c047fff7fe0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0x0c047fff7ff0: 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
  0x0c047fff8000: fa fa 06 fa fa fa 00 01 fa fa 00 01 fa fa 07 fa
  0x0c047fff8010: fa fa 00 03 fa fa 06 fa fa fa 00 01 fa fa 05 fa
  0x0c047fff8020: fa fa fd fd fa fa fd fa fa fa fd fd fa fa fd fa
=>0x0c047fff8030: fa fa 04 fa fa fa fd fa fa fa 02 fa fa fa[04]fa
  0x0c047fff8040: fa fa fd fa fa fa fd fa fa fa 02 fa fa fa 02 fa
  0x0c047fff8050: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0c047fff8060: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0c047fff8070: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
  0x0c047fff8080: fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa fa
...
